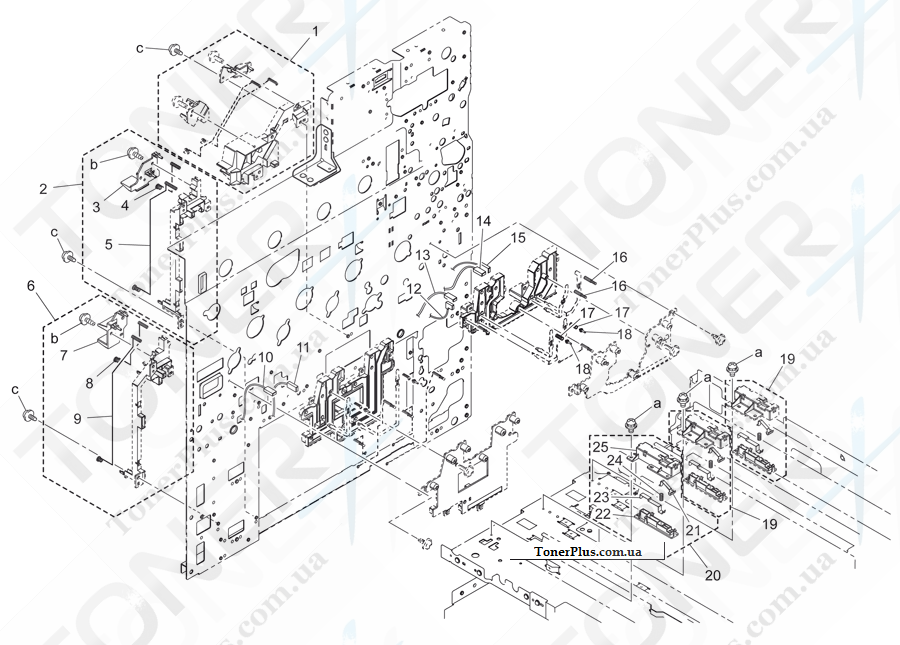

Каталог запчастей для Konica-Minolta bizhub C452 - CONTACT SECTION

№	Номер партии	Описание	Примечание
1	A0P0 R718 00	C/K contact assy
10	A00J N131 00	Chaging Wiring /M
11	A00J N130 00	Chaging Wiring /Y
12	A0P0 N133 00	Chaging Wiring /K
13	A00J N136 00	CHANGING WIRING
14	A00J N132 00	Chaging Wiring /C
15	A00J N137 00	CHANGING WIRING/2
16	A0P0 1119 00	Compressing Coil spring
17	4004 2317 01	PRESSURE SPRING
18	4036 2311 01	PIN
19	A0P0 R715 00	Contact2 assy
2	A00J R739 00	TERMINAL M ASSY
20	A00J R734 00	TERMINAL 3 ASSY
21	A00J 1108 00	Developing Contact /Front
22	A00J 1122 00	Holder /Color
23	A00J 1109 00	Developing Contact /Middle
24	A00J 1159 00	Compressing Spring
25	A00J 1128 00	COVER /YELLOW
3	A00J 1185 00	Cover /Magenta
4	A00J 1181 00	Developing Contact /Magenta
5	A00J 1183 00	Contact /Magenta
6	A00J R738 00	TERMINAL Y ASSY
7	A00J 1184 00	Cover /Yellow
8	A00J 1180 00	Developing Contact /Yellow
9	A00J 1182 00	Contact /Yellow
