Konica-Minolta bizhub C45

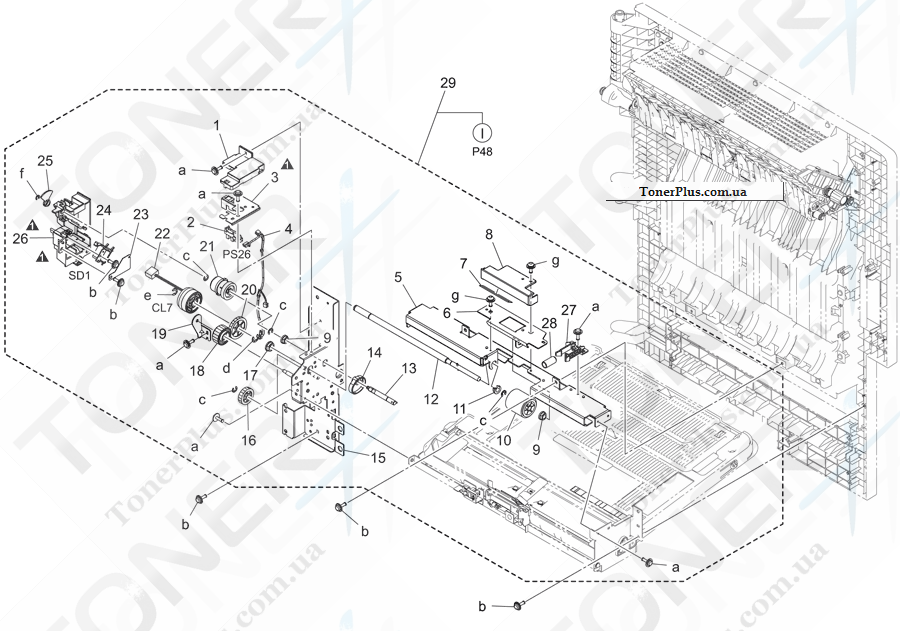

47. BYPASS TRAY SECTION
Каталог запчастей для Konica-Minolta bizhub C454e - BYPASS TRAY SECTION
№
Номер партии
Описание
Примечание
1
A161592800
Wiring Cover /A
D
10
A00F623201
Roller
B
11
A161594400
Slide Stopper
C
12
A161591500
Paper feed Shaft
D
13
A161591400
Drive Shaft
D
14
A161593300
Paper feed Cam
C
15
A161F59001
Caulking(Mounting Plate Drive Frame)
16
A02E595400
Gear 22T
C
17
4131353202
BUSHING
C
18
A161590800
Bypass Gear 24T
C
19
A161590600
Reinforce Plate
D
2
A108M50100
Photointerrupter
B
20
A02E596100
Gear 30T
C
21
A02E595100
Clutch assy
C
22
A02EM20100
Clutch
B
23
A0ED597800
Cover
D
24
9J06M20000
SOLENOID
B
25
A161591300
Light blocking Plate
C
26
A161591200Old
Drive Cover
D
26
A5C1591200
Drive Cover
D
27
A161594800
Hold Claw
C
28
A161594900
Coil spring
C
29
A5C1R71111
Multiple Bypass Tray Assy
S
3
A161591900Old
Mounting Plate
D
3
A5C1591900
Mounting Plate
D
4
A161N12200
Paperfeed Drive harness /1
D
5
A161590201
Paper feed Frame
D
6
A161594100
Reinforce Plate
D
7
A161594700
Guide Sheet
C
8
A161591700
Auxiliary Guide
D
9
A02E596300
Bushing
C
