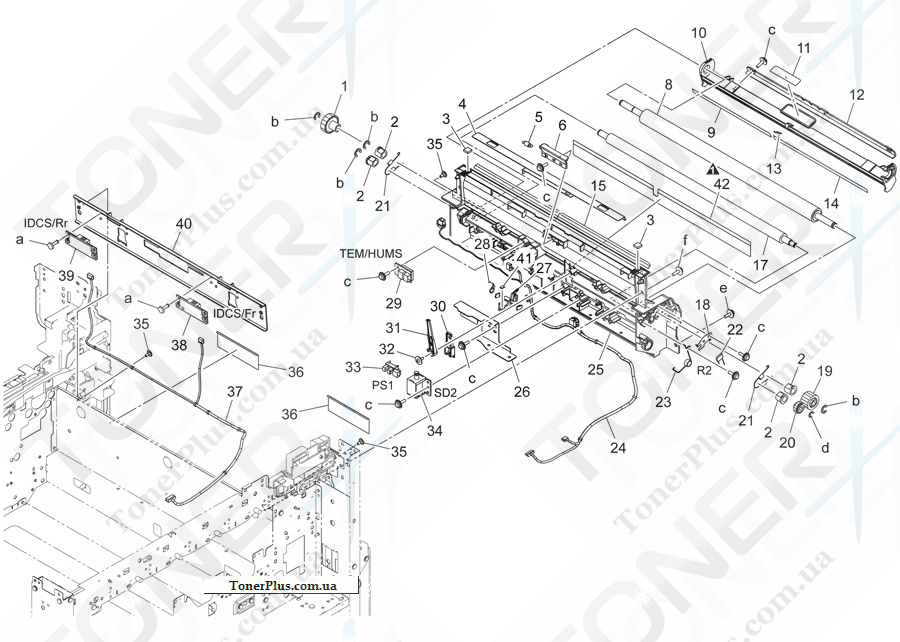

Каталог запчастей для Konica-Minolta bizhub C454e - CONVEYANCE SECTION

№	Номер партии	Описание	Примечание
1	A2XK709000	Gear 24T	C
10	A161700600	Guide Plate /Middle	D
11	A161946300	Label M2	D
12	A02E712902	Reinforce Plate	D
13	4038353901	GUIDE	C
14	A0ED700600	Guide Sheet	D
15	A161701301	Guide Sheet /A	C
17	A0ED700200	Roller	D
18	A161700800	Ground Plate /D	D
19	A0ED700300	Gear 20T	D
2	A161702200	Bushing	C
20	A0ED700700	Gear 14T	D
21	A161702000	Conveyance Spring /A	C
22	V800500300	FIXED POWER RESISTORS	D
23	A0ED703200	Torsion Coil spring	D
24	A2XKN10G00	Conveyance Detection harness /H	D
25	A161700107	Guide Plate /Inside	D
26	A161700300	Mounting Plate /B	D
27	A161701703	Actuator /T	C
28	A161701100	Spring /A	C
29	A0P0M50400	Humidity sensor	C
3	A161701900	Seal /A	D
30	A161700700	Arm /2	D
31	A161700401	Arm /1	D
32	4163529301	SCREW	C
33	A108M50100	Photointerrupter	B
34	A034M20100	Conveyance Solenoid	C
35	4011585202	SHOULDER SCREW	C
36	A161701800	Protection Sheet	D
37	A161N12H00	Sensor Wiring /3	D
38	A161M50000	Photo sensing	I
39	A161M50300	Photo sensing	I
4	A0ED705800	Cover	D
40	A161700901	Reinforce Plate	D
41	A161702100	Cushion /C	C
42	A5C1701400	Guide Sheet /B	D
5	A0ED702800	Pulling Spring	D
6	A161706001	Holding Shutter	D
8	A5C1700101	Roller	C
9	4038353701	GUIDE	C
