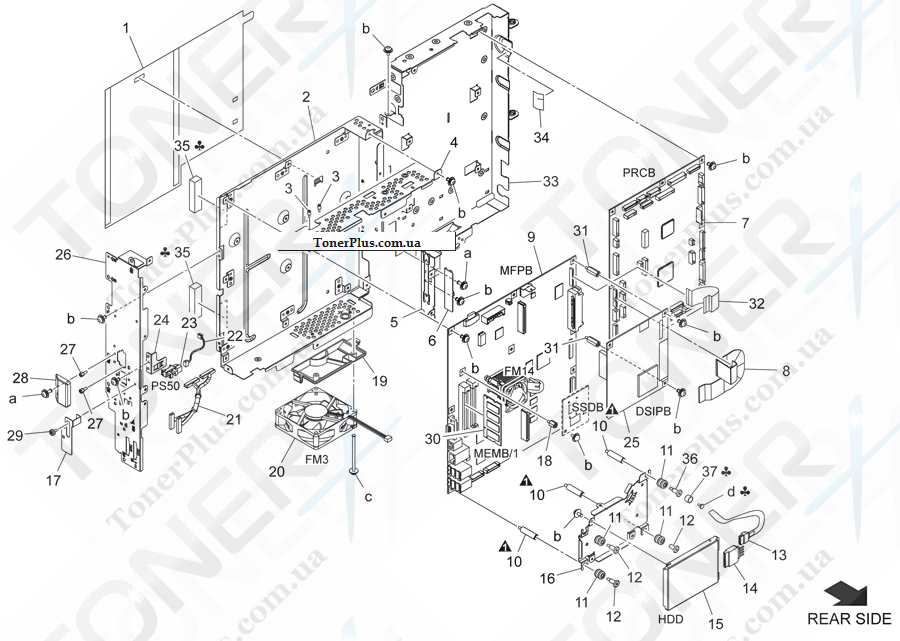

Каталог запчастей для Konica-Minolta bizhub C454e - ELECTRICAL COMPONENTS 2

№	Номер партии	Описание	Примечание
1	A161134500	Sheet	D
10	A5C1139900	Shoulder screw	D
11	A0P0144400	Bushing	D
12	A0P0144300	Shoulder screw	D
13	A0P0N15100	Cable	C
14	A0P0N15200	Cable	C
15	A2X0M72C00	HDD	I
16	A161130701	Mounting Plate	D
17	A161139501	Cover	D
18	A161137600	Shoulder screw	D
19	A161140101	Duct	D
2	A5C1131900	Shield Case	D
20	A0EDM10500	Fan motor	C
21	A161N12602	Control Relay harness	D
22	A161N11B00	Controller Detection harness	D
23	A108M50100	Photointerrupter	B
24	A5C1139400	Mounting Plate	D
25	A5C1H02A01	PWB assembly(PWB-DS)	I
26	A5C1131600	Mounting Plate	D
27	A161137900	Screw	C
28	A0ED131900	Cover	D
29	A0P0742300	Shoulder screw	C
3	A161138601	Shoulder screw	C
30	V865300066	MEMORY MODULES	C
31	A4MG130900	Shoulder screw	D
32	A161N15500	Interface Flatcable	C
33	A5AY131803	Shield Case	C
34	A161135700	Protection Seal	C
35	A5C1M90000	Gasket	C,D1,D3,E,F2,G1,I,K,J
36	A5C1133800	Shoulder screw	C
37	A5C1133900	Compressing Coil spring	C,D1,D3,E,F2,G1,I,K,J
4	A5C1137402	Mounting Plate	D
5	A5C1138800	Mounting Plate	D
6	A161137501	Cover	D
7	A5C0H00101	PWB Assembly(PWB-MCH)	I
8	A161N11800	Flatcable /50	C
9	A5C1H02007	PWB assembly(PWB-MFP)	I
