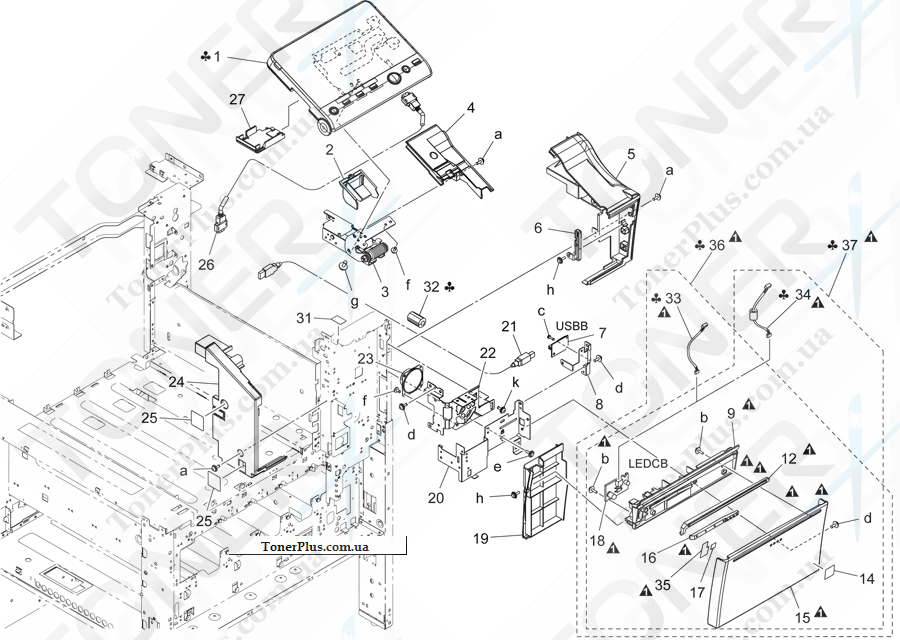

Каталог запчастей для Konica-Minolta bizhub C454e - OPERATION PANEL SECTION

№	Номер партии	Описание	Примечание
1	A5C1M70003	Panel assembly	A,A1
1	A5C1M70400	Panel assembly	H
1	A5C1M70103	Panel assembly	B,D1,D3,E,F2,G1,G2, I,K
1	A5C1M70301	Panel assembly	J
1	A5C1M70203	Panel assembly	C
12	A5C1167000Old	Lens	D
12	A161167000	Lens	D
14	A011946200	Label Emperon	D
15	A5C1161701Old	Cover	C
15	A161161702	Cover	C
16	A161167100	Lens	D
17	A5C1167400Old	Light blocking Sheet	D
17	A161167400	Light blocking Sheet /2	D
18	A161H00U01	PWB Assembly(PWB-LED ASSY)	C
18	A5C1H00E01Old	PWB Assembly(PWB-LEDCNT)	C
19	A161161900	Cover	D
2	A161190900	Cover	C
20	A161164104	Mounting Plate	D
21	A0P0N15300	Cable	C
22	A5C1137302	Mounting Plate	D
23	A0P0M73100	Speaker	D
24	A161161401	Cover	C
25	A161162400	Seal	C
26	A5C1N15601	Interface Cable	D
27	A55V161201	Cover	C
3	A5C1R70911	Mounting Plate Assy	C
31	A5C1122600	Spacer	D
32	A5C1M92000	Ferritecore	C,D1,D3,E,F2,G1,I,K,J
33	A5C1N10B00	Indicating Wiring/3	A,A1,B,G2
34	A5C1N10D00	InIndicating Wiring/4	C,D1,D3,E,F2,G1,I,K,H,J
34	A5C1N10C00Old	Indicating Wiring/4	C,D1,D3,E,F2,G1,I,K,H,J
35	A161167300	Light blocking Sheet /1	D
36	A5C1R71500	Cover (Panel Lower) Assy	A,A1,B,G2
37	A5C1R71400	Cover (Panel Lower) Assy	C,D1,D3,E,F2,G1,I,K
4	A161162604	Cover	C
5	A161161503	Cover	C
6	A161164000	Cover	D
7	A0P0H02500	PWB assembly(PWB-UCN ASSY)	D
8	A161138002	Mounting Plate	D
9	A5C1167202Old	Light blocking Cover	D
9	A5C1167800	Light blocking Cover	D
