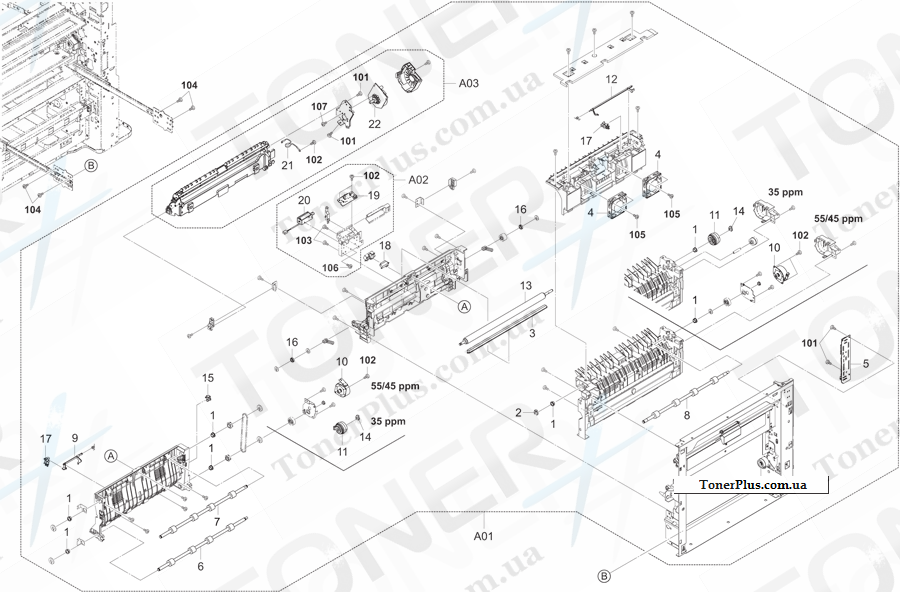

Каталог запчастей для Kyocera-Mita TASKalfa 3500i - Paper Conveying Section 1

№	Номер партии	Описание	Примечание
1	2BC06510	BUSHING 8	2BC06510
10	302K994980	PARTS MOTOR PM REGIST SP (55/45 ppm)	2K994980
101	7BB700308H	+BIND T.T S SCREW 3X8 SR	BB105600
102	7BB700306H	+BIND T.T S SCREW 3X6 SR	BB105590
103	7BB200308H	+BIND T.T P SCREW 3X8	BB105660
104	7BB700408H	+BIND T.T S SCREW 4X8 SR	BB105640
105	7BB300323H	+BIND T.T B SCREW 3X23	BB105800
106	7BB000303H	+BIND M SCREW 3X3	BB107000
107	7BB000304H	+BIND M SCREW 3X4	BB105720
11	302KV44041	CLUTCH 50 Z35R (35 ppm)	2KV44041
12	302LC29050	ACTUATOR DU B	2LC29050
13	302LF24150	ROLLER REGIST R	2LF24150
14	5MVX111DN003	RING STOPPER /A-49 FEED A4 (35 ppm)	2A806250
15	66127010	SWITCH,COVER OPEN	66127010
16	7BE006103431H01	BEARING MR106ZZ	BE122720
17	7NXGP1A173LCH01	SENSOR OPT.	NX115300
18	302LC94410	PARTS SENSOR OPT. SP	2LC94410
19	302K994160	PARTS ID SENSOR ASSY SP	2K994160
2	2BC06910	STOPPER 6	2BC06910
20	302K994390	PARTS SOLENOID ID SENSOR SP	2K994390
21	302FZ01310	VARISTOR TC ASSY	2FZ01310
22	302LC94290	PARTS MOTOR-BL W10 SP	2LC94290
3	2BL07950	UNDER CLEANER REGIST	2BL07950
4	302FZ94420	PARTS,FAN COOLING CONVEYING SP	2FZ94420
5	302K994201	PARTS PWB JUNCTION ASSY SP	2K994201
6	302LK94060	PARTS ROLLER DU LOW SP (35 ppm)	2LK94060
6	302K994470	PARTS ROLLER DU LOW SP (55/45 ppm)	2K994470
7	302K994480	PARTS ROLLER DU MID SP	2K994480
8	302K994490	PARTS ROLLER DU UP SP (55/45 ppm)	2K994490
8	302LK94070	PARTS ROLLER DU UP SP (35 ppm)	2LK94070
9	302K929330	ACTUATOR DU	2K929330
A01	302LH94040	PARTS CONVEYING H UNIT(GAIA) SP (55/45 ppm)	2LH94040
A01	302LL94010	PARTS CONVEYING H UNIT(GAIA) SP (35 ppm)	2LL94010
A02	302LF94070	PARTS ID SENSOR ASSY SP	2LF94070
A03	302LF94060	PARTS BELT ASSY SP	2LF94060
