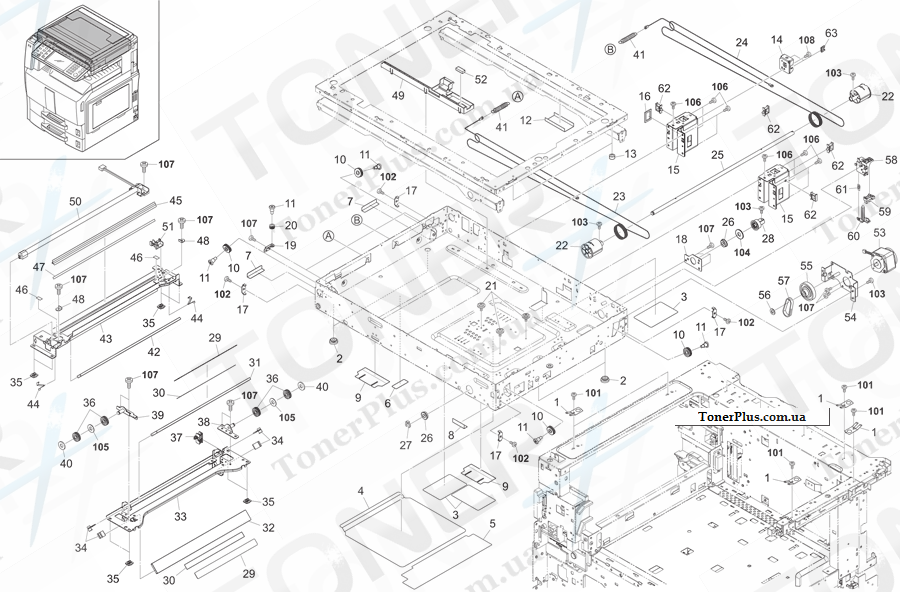

Каталог запчастей для Kyocera-Mita TASKalfa 500ci - Scanner Section 1

№	Номер партии	Описание	Примечание
1	302GR02570	GROUND PLATE ISU C	2GR02570
10	302H717160	PULLEY SCANNER	2H717160
101	7BB100306H	+BIND T.T S SCREW 3X6	BB046010
102	7BB702308H	+TP-FLAT T.T S SCREW 3X8 SR	BB107060
103	B0A23080	+ROUND HEAD SCREW WITH SW.W M3X8(TRI	B0A23080
104	7BCW7085D020H01	WAVE WASHER SUS WW8.5X13X0.2	C3791130
105	C2895950	SHIM 6.2-1.0T	C2895950
106	7BB700308H	+BIND T.T S SCREW 3X8 SR	BB105600
107	7BB700306H	+BIND T.T S SCREW 3X6 SR	BB105590
108	7BB700408H	+BIND T.T S SCREW 4X8 SR	BB105640
11	302GR17350	PIN WIRE PULLEY B	2GR17350
12	302GR17870	SEAL RAIL SCANNER F	2GR17870
13	302H002380	SHIELD SCREW	2H002380
14	302H717400	MOUNT DP PLATE	2H717400
15	302GR17272	MOUNT DP HINGE	2GR17272
16	302H717150	SEAL BRACKET ISU	2H717150
17	302GR17790	PLATE HOLDER RAIL	2GR17790
18	302GR17880	HOLDER BEARING	2GR17880
19	302GR17860	PLATE PULLEY	2GR17860
2	302H717290	BASE RUBBER SCANNER SECTION	2H717290
20	2BC07050	PULLEY,LIFT WIRE	2BC07050
21	302GR17660	PIN ISU	2GR17660
22	302H717250	DRUM PULLEY	2H717250
23	302H717380	WIRE SCANNER FRONT	2H717380
24	302H717390	WIRE SCANNER REAR	2H717390
25	302GR17190	SHAFT SCANNER	2GR17190
26	28107400	BEARING,688ZZNR	28107400
27	2BC06910	STOPPER 6	2BC06910
28	302FZ17020	PULLEY SCANNER 50 (25/25, 30/30 ppm)	2FZ17020
28	302GR17210	PULLEY SCANNER 43 (40/40, 50/40 ppm)	2GR17210
29	302GR17830	PLATE MIRROR B	2GR17830
3	302GR17410	SEAL FRAME A	2GR17410
30	302GR17840	SEAL PLATE MIRROR B	2GR17840
31	302GR17280	MIRROR B	2GR17280
32	302GR17960	MIRROR C	2GR17960
33	302GR17091	MIRROR FRAME B	2GR17091
34	75712080	MIRROR HOLDER	75712080
35	2DC12230	SLIDER SCANNER	2DC12230
36	302H717370	PULLEY SCANNER	2H717370
37	302GR17150	GUIDE WIRE B	2GR17150
38	302GR17980	PULLEY PLATE B	2GR17980
39	302GR17131	ADJUSTING PLATE B	2GR17131
4	302GR17420	SEAL FRAME B	2GR17420
40	2BG22990	CUT WASHER 4	2BG22990
41	302C912291	SPRING SCANNER TENSION	2C912291
42	2FB12140	MIRROR A	2FB12140
43	302GR17082	MIRROR FRAME A	2GR17082
44	2BC12190	SPRING,MIRROR HOLDER	2BC12190
45	302GR17250	REFLECTOR SCANNER	2GR17250
46	302GR17400	FILM LAMP	2GR17400
47	302GR17620	TAPE REFLECTOR	2GR17620
48	2C912150	RETAINER WIRE	2C912150
49	302GR17160	GUIDE WIRE C	2GR17160
5	302GR17460	SEAL FRAME C	2GR17460
50	302H794260	PARTS LAMP SCANNER	2H794260
51	302GR17140	GUIDE WIRE A	2GR17140
52	302H717320	HOLDER GUIDE WIRE C	2H717320
53	302H794270	PARTS MOTOR SCANNER	2H794270
54	302GR17220	MOUNT SCANNER DRIVE (40/40, 50/40 ppm)	2GR17220
54	302FZ17030	MOUNT SCANNER DRIVE (25/25, 30/30 ppm)	2FZ17030
55	302FZ17010	PULLEY SCANNER 41/26 (25/25, 30/30 ppm)	2FZ17010
55	302GR17200	PULLEY SCANNER 47/34 (40/40, 50/40 ppm)	2GR17200
56	5MVS665KB001	CUT WASHER	2BM40060
57	302GR17230	BELT SCANNER (40/40, 50/40 ppm)	2GR17230
57	302FZ17040	BELT SCANNER (25/25, 30/30 ppm)	2FZ17040
58	302GR17300	MOUNT RELEASE SWITCH	2GR17300
59	2C927210	SENSOR 248NL1	2C927210
6	303KB28010	PAD JS SENSOR	3KB28010
60	302GR17370	SWITCH RELEASE	2GR17370
61	302GR17380	SPRING RELEASE SWITCH	2GR17380
62	7YZM610001++H01	ACCESS SADDLE	YZ010230
63	7YZM210006++H01	ACCESS.EDGING	YZ038000
7	302GR17930	SEAL SCANNER FRAME E	2GR17930
8	302FZ17051	SEAL FRAME E	2FZ17051
9	302H705180	FILM OPE WIRE	2H705180
