Каталог запчастей для Lexmark X860de - Platen glass

Каталог запчастей для Lexmark X860de - Platen glass

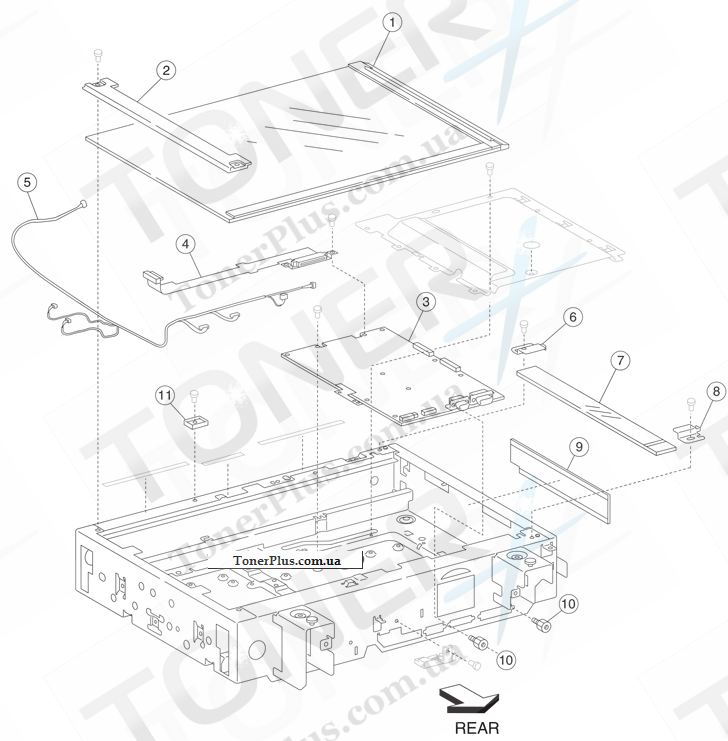

№ Номер партии Описание Примечание
1 40X2208 Large platen glass
10 40X2217 Card mounting screws
11 40X2218 Large platen retainer
2 40X2209 Large platen glass retainer cover
3 40X2210 Scanner controller card assembly
4 40X2211 CCD ribbon cable assembly
5 40X2212 Scanner main cable assembly
6 40X2213 Small platen glass front retainer
7 40X2214 Small platen glass
8 40X2215 Small platen glass rear retainer
9 40X2216 Scanner filter
