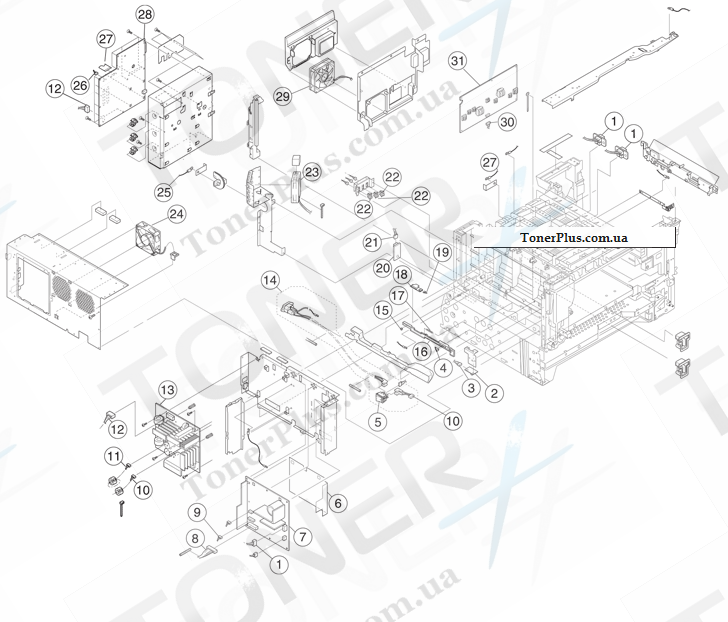

Каталог запчастей для Lexmark X925 - Electrical 1

Каталог запчастей для Lexmark X925 - Electrical 1
№ Номер партии Описание Примечание
1 40X6211 LV fuser power cable
1 40X6440 HV fuser power cable
10 40X6926 Sub main power cable
11 40X6753 MPSP cable (scanner - low volt power supply)
12 40X6752 RIP power supply cable
13 40X6750 110V Scanner power supply
13 40X6751 220V Scanner power supply
14 40X6749 Main power cable
15 40X6263 Sensor A/S cleaner
16 40X6266 Sensor cover
17 40X6265 Sensor cover spring
18 40X6199 Density sensor
19 40X6201 Density sensor cable
2 40X6197 Theta sensor
20 40X6202 Humidity sensor
21 40X6203 Humidity sensor cable
22 40X6428 Paper size sensors
23 40X6206 Main fan
24 40X6205 Power supply fan
25 40X6425 HVT cable
26 40X6748 RIP harness cable
27 40X6370 RIP print controller cable
28 40X6317 RIP board
29 40X6427 Engine board fan
3 40X6198 Theta sensor cable
30 40X6208 High volt power supply cable
31 40X6212 High volt power supply
32 40X6305 UICC - RIP cable
33 40X6309 USB front reader cable
4 40X6264 Sensor B/S cleaner
5 40X6371 Main power button
6 40X6213 Insulation seal
7 40X5984 220 V Low voltage power supply
7 40X6204 110 V Low voltage power supply
8 40X6747 Engine power supply cable
9 40X6210 Power supply fan cable
NS 40X6312 RIP scanner cable
NS 40X6310 USB card reader cable
NS 40X7055 Modem card
NS 40X6311 RIP - scanner FFC cable (ribbon cable)
NS 40X7448 Electrical screw parts pack
