7. BY-PASS FEED SECTION (

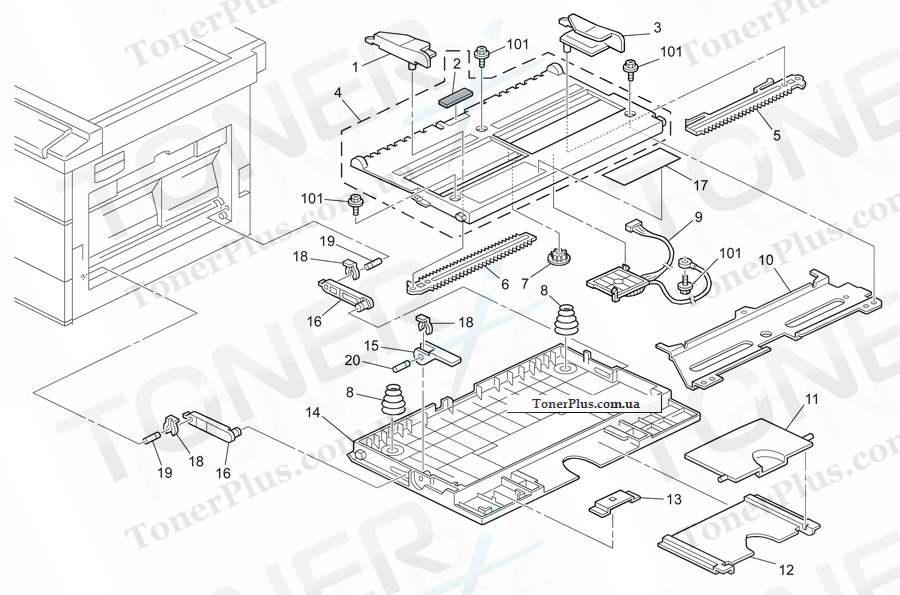

Каталог запчастей для Ricoh Aficio MP1610L - BY-PASS FEED SECTION (B282/B283)
№
Номер партии
Описание
Примечание
*
B259 2602
Manual Feed Table Assy
1
B039 2631
Front Side Fence
10
B039 2629
Stay - Tray Bottom Plate
101
0451 3008N
Tapping Screw - M3x8
11
B039 2620
Paper Guide - Extension
12
B039 2621
Paper Guide
13
B121 2617
Magnet Catch - By-pass Feed
14
B039 2619
By-pass Feed Table
15
G020 2784
Lever - By-pass Feed Table
16
B039 2643
Link - By-pass Feed Table
17
B039 2633
Decal - By-pass Feed
18
54 472 681
Snap Ring
19
B259 2642
Pin - Mm6
2
B039 2628
Bottom Plate Pad
20
B259 2786
Lever Shaft
3
B039 2632
Rear Side Fence
4
B039 2630
Tray Bottom Plate
5
B039 2638
Rack - Rear Side Fence
6
B039 2637
Rack - Front Side Fence
7
G012 3050
Side Fence Gear
8
AA06 3643
Spring - By-pass Feed Table
9
AW50 0034
Paper Size Sensor
