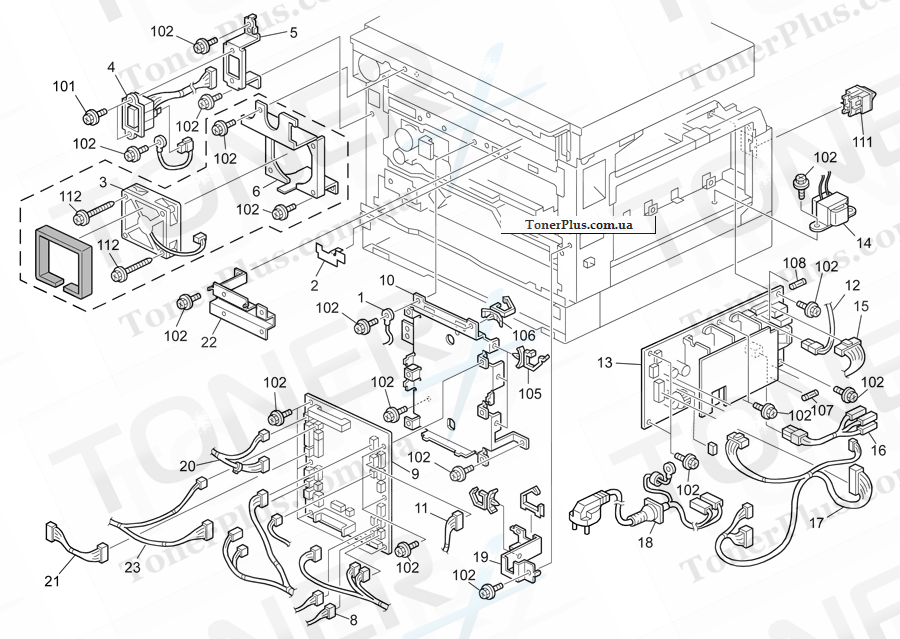

Каталог запчастей для Ricoh Aficio MP1610L - ELECTRICAL SECTION 1 (B282/B283)

№	Номер партии	Описание	Примечание
1	B121 5208	Harness - Ground Wire Scanner (B283)
1	B122 5208	Ground Wire
10	B121 5810	BICU Bracket
101	0451 3008N	Tapping Screw - M3x8
102	0451 3006N	Tapping Screw - 3x6
104	8 010 149	Philips Pan Head Screw - M4x6
105	11 050 487	Harness Clamp
106	11 050 511	Harness Clamp - LWS-0306ZC
107	11 071 083	Fuse:Sst 4
107	11 071 063	Fuse:ET-2.5A
108	11 071 084	Fuse:CES14-8A-N1
11	B121 5220	Harness - Hps
111	12 042 608	Rocker Switch:Sddje33900
112	0451 3030N	Tapping Screw:3x30
12	B243 5217	Harness - AC Fusing EU
13	AZ23 0201	Power Supply Unit(230v)
14	B243 5018	Choke Coil - B2435018
15	B282 5228	Harness:AC:Dehumidifier:Exp
16	B243 5226	Harness - AC Switch 187
17	B243 5230	Harness - Power Supply Unit
18	B039 5744	Power Supply Cord - 230V
19	B121 5825	Power Supply Cord Bracket
2	B121 5822	Guide Mylar (B282)
20	B121 5200	Harness - Scanner Motor
21	B243 5203	Harness - Main Motor
22	B122 5821	Box Holder
23	B121 5212	Harness - Manual Feed
3	AX64 0145	Fan DC24V/1.92W
4	B121 5240	Harness - Document Feeder
5	B039 5831	ADF Plug Bracket
6	B123 1102	Rear Fan Bracket
8	B121 5215	Harness - Paper End Sensor No.1
9	B282 5104	PCB:BICU:CHN:Assy
