Ricoh Aficio MP171
8. ARDF 1 (D068/D069/D072

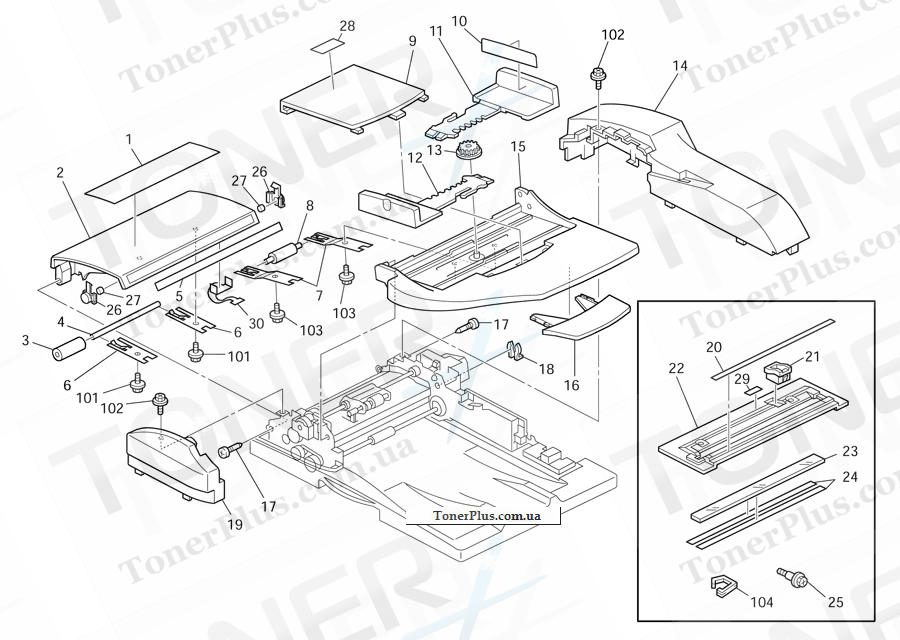

Каталог запчастей для Ricoh Aficio MP171 - ARDF 1 (D068/D069/D072)
№
Номер партии
Описание
Примечание
1
B872 6011
Decal: Misfeed Removal
10
B872 6021
Decal: Side Fence
101
0452 3008N
Tapping Screw - M3x8
102
0451 3008N
Tapping Screw - M3x8
103
0450 3006N
Tapping Screw - M3x6
104
11 050 518
Edge Saddle - LES-1010
11
B872 4613
Guide: Original Table: Rear
12
B872 4612
Guide: Original Table: Front
13
BB01 3003
Gear - 14Z
14
B872 4731
Cover: Rear
15
B872 4611
Original Table
16
B872 4621
Original Table: Auxiliary
17
AA14 3788
Pin: Guide Plate: Paper Feed
18
52 152 621
Snap Ring - M6
19
B872 4741
Cover: Front
2
B872 4711
Cover: Open And Close
20
B872 6061
Decal: Scale: Left: NA
20
B872 6071
Decal: Scale: Left: EU
21
B872 7014
Cap: Registration Sensor: Scale
22
B872 7010
Scale: Left: Adhesion (D068/D069/D072)
23
AC01 3005
DF Exposure Glass
24
B044 4929
Sheet - Exposure Glass
25
AA14 3866
Screw: DIA3.4: M3
26
B872 4726
Case: Magnetic
27
G827 1023
Magnetic: Hale: DIA10x7
28
A859 2352
Pressure Plate Pad
29
B872 6081
Decal: Caution Chart
3
AF02 2144
Pressure Roller
30
B872 4712
Guide Mylar
4
B872 4721
Shaft: Pressure: Dia4
5
B872 6031
Decal: Size: Original
6
B872 4722
Spring Plate: R0
7
B872 4624
Spring Plate
8
B872 4616
Roller: Reverse: Pressure
9
B872 4615
Cover: Original Table
