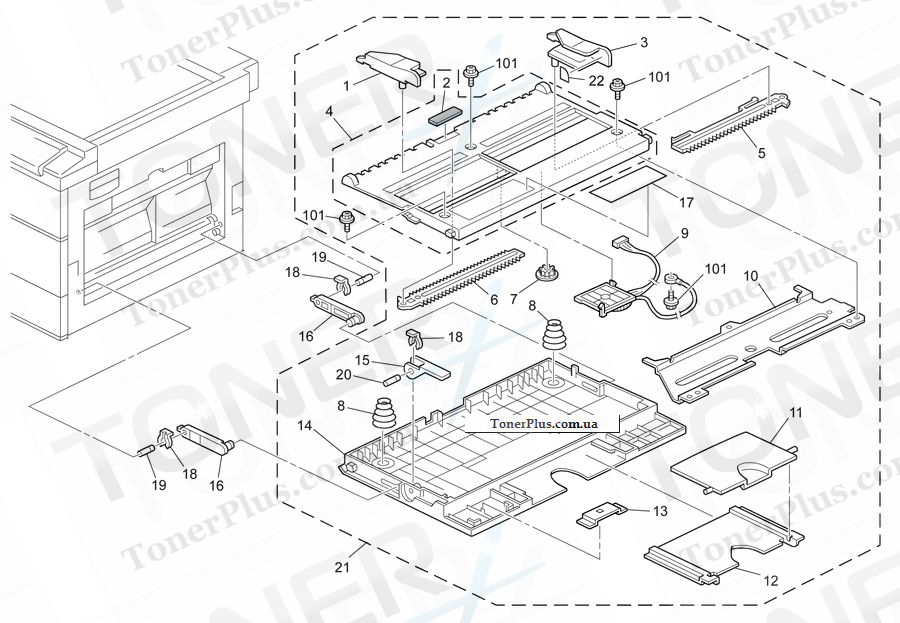

Каталог запчастей для Ricoh Aficio MP1811L - By-pass Feed Section (B282-62/B283-62)

№	Номер партии	Описание	Примечание
1	B039 2631	Front Side Fence
10	B039 2629	Stay - Tray Bottom Plate
101	0451 3008N	Tapping Screw - M3x8
11	B039 2620	Paper Guide - Extension
12	B039 2621	Paper Guide
13	B121 2617	Magnet Catch - By-pass Feed
14	B039 2619	By-pass Feed Table
15	G020 2784	Lever - By-pass Feed Table
16	B039 2643	Link - By-pass Feed Table
17	B039 2633	Decal - By-pass Feed
18	54 472 681	Snap Ring
19	B259 2642	Pin - MM6
2	B039 2628	Bottom Plate Pad
20	B259 2786	Lever Shaft
21	B259 2602	Manual Feed Table Assy
22	B238 2753	Decal - Side Fence
3	B039 2632	Rear Side Fence
4	B039 2630	Tray Bottom Plate
5	B039 2638	Rack - Rear Side Fence
6	B039 2637	Rack - Front Side Fence
7	G012 3050	Side Fence Gear
8	AA06 3643	Spring - By-pass Feed Table
9	B039 2645	Rotary Switch
