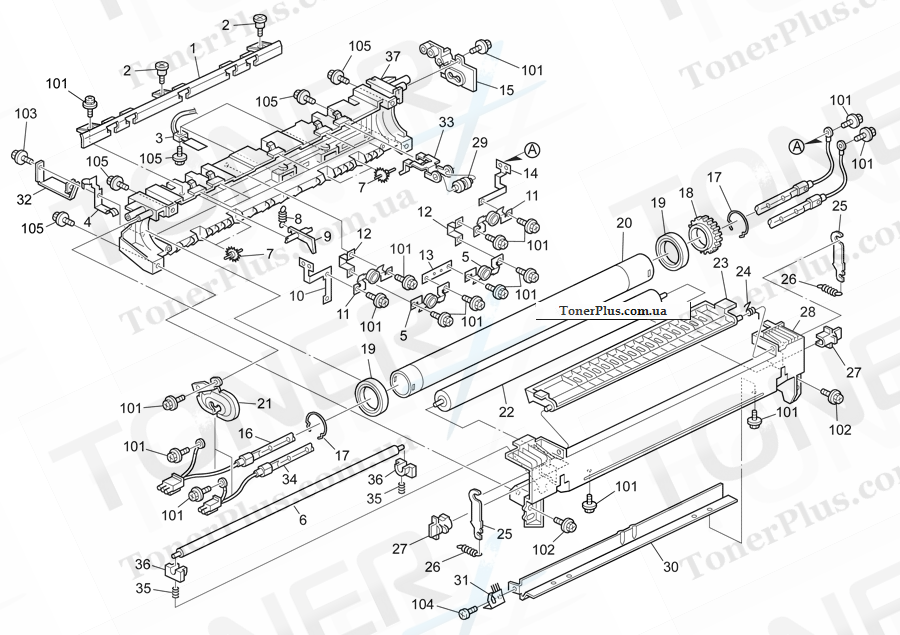

Каталог запчастей для Ricoh Aficio MP1900 - Fusing Unit (D096)


Каталог запчастей для Ricoh Aficio MP1900 - Fusing Unit (D096)
Номер партии Описание Примечание
* B259 4003 Fusing Unit:NA:Assy
* B259 4006 Fusing Unit:EU:Assy
* B259 4007 Fusing Unit:TWN:Assy
1 B039 4102 Fusing Exit Guide
10 B121 4111 Front Electrode Plate
101 0804 6123 Hexagonal Bolt:W/Washer:M3x8
102 0954 4008N Screw - M4x8
103 0452 3008N Tapping Screw - M3x8
104 0313 0060N Screw - M3x6
105 0954 3010N Screw:Polished Round/Spring:M3x10
11 B121 4120 Thermostat Assy
12 B121 4113 Short Electrode Plate
13 B121 4112 Long Electrode Plate
14 B121 4114 Rear Electrode Plate
15 B259 4091 Rear Heater Holder
16 B259 4028 Heater - 230V/550W
16 B259 4212 Heater - 110V/600W (TWN)
16 B259 4210 Heater - 120V/550W
17 G029 4140 External Circlip
18 B039 4171 Gear - 41Z
19 G052 4618 Bearing 30x42x7
2 AA14 3870 Stepped Screw
20 AE01 1113 Hot Roller MM30
21 B121 4090 Front Heater Holder
22 AE02 0150 Pressure Roller
23 B039 4107 Fusing Exit Door
24 AA06 6635 Spring - Fusing Exit Guide
25 B039 4135 Pressure Roller Lever
26 AA06 2324 Pressure Spring
27 G029 4174 Pressure Roller Bushing
28 B245 4054 Frame:Pressure:Printing
29 B039 4170 Stripper Pawls Roller
3 AW10 0073 Thermistor
30 B259 4115 Fusing Entrance Guide Plate
31 B039 4117 Discharge Brush
32 B039 4114 Rear Ground Plate
33 B039 4168 Stripper Pawlsstopper
34 B259 4214 Heater - 230V/600W
34 B259 4216 Heater - 110V/550W (TWN)
34 B259 4215 Heater - 120V/600W
35 AA06 3570 Tension Spring
36 AA08 2073 Roller Busing
37 B259 4103 Frame:Fusing
4 B039 4118 Front Ground Plate
5 B039 4120 Thermostat
6 B259 4015 Fusing Cleaning Roller
7 A232 2374 Spur
8 AA06 6637 Stripper Pawl Spring
9 AE04 4062 Stripper Pawls
