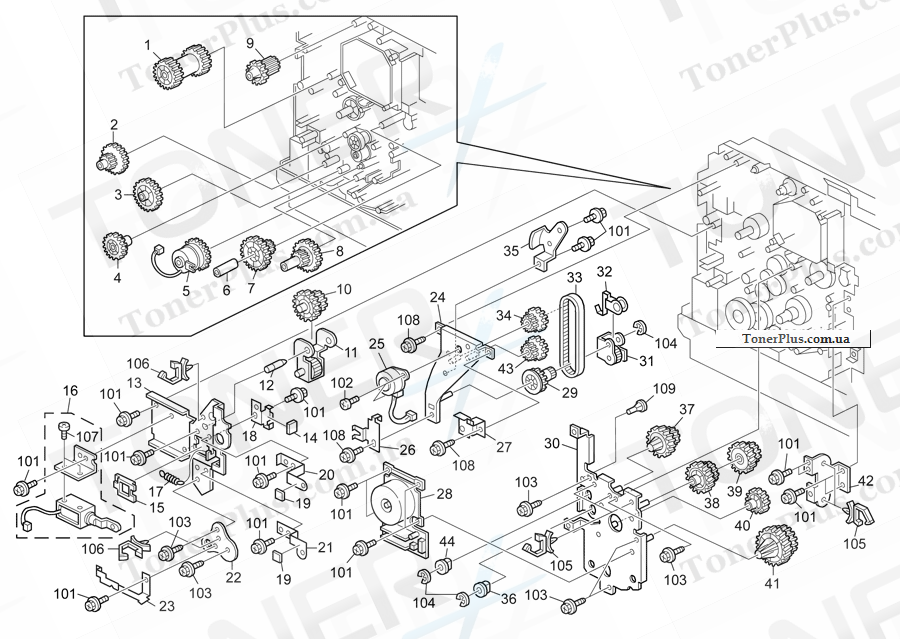

Каталог запчастей для Ricoh Aficio MP201SPF - Drive Section


Каталог запчастей для Ricoh Aficio MP201SPF - Drive Section
Номер партии Описание Примечание
1 BB01 3006 Gear - 27Z
10 AB01 7663 Gear - 18/40Z
101 0451 3006N Tapping Screw - 3x6
102 0453 3006N Tapping Screw - M3x6
103 0450 3010N Tapping Screw - M3x10
104 0720 0040E Retaining Ring - M4
105 1105 0487 Harness Clamp
106 1105 0511 Harness Clamp - LWS-0306ZC
107 0353 0040N Screw - M3x4
108 0450 3008N Tapping Screw - M3x8
109 1105 0499 Support Spacer - M3x29
11 B129 1164 Fusing Bracket Assy
12 AA14 3804 Fusing Shaft 5
13 B129 1110 Rear Drive Plate 2
14 AA16 1157 Bracket Cushion
15 B129 1056 Shaft Spacer
16 B129 1161 Lever DC Solenoid Assy
17 AA06 2326 Spring - Swivel Fusing
18 B129 1129 Plate Cushion
19 B044 1139 Damping Insulation
2 AB01 7586 Coupled Gear - 43/53Z
20 AA12 0124 Ground Plate - Drum Drive
21 AA12 0104 Ground Plate - Registration
22 B129 1157 Side Plate - Manual Feed
23 B129 2820 Ground Plate - Manual Feed
24 H556 4172 Duplex Drive Bracket
25 AX06 0336 Stepper Motor-Duplex-DC24V 14.9W
26 B129 4703 Ground Plate - Lower Duplex Bracket
27 B262 4701 Spring Plate:Discharge
28 AX06 0344 Brushless Motor:DC24V:20W
29 AB01 7628 Gear - 19/38Z
3 AB01 1438 Gear - 41Z
30 B129 1163 Rear Drive Plate 1 Assy
31 H556 4183 Swivel Bracket
32 H556 4178 Spring Plate
33 AA04 3582 Timing Belt
34 AB03 2071 Pulley - 24Z
35 H556 4180 Plate Bracket
36 5424 4142 Bushing - Cleaning Roller
37 AB01 7661 Gear - 29/69Z
38 AB01 7660 Gear - 44/67Z
39 AB01 7662 Gear - 17/67Z
4 AB01 1492 Gear - 29Z
40 AB01 0362 Gear - 49Z
41 AB01 7659 Gear - 43/91Z
42 B044 1158 Bracket
43 AB01 7627 Gear - 28/43Z
44 5053 0447 Bushing - 6mm
5 AX20 0309 Magnetic Clutch:0.25N.m:Z43
6 AA13 2217 Collar
7 AB01 7587 Coupled Gear - 17/44Z
8 AB01 7585 Coupled Gear - 17/44Z
9 AB01 7629 Gear - 19/21Z
