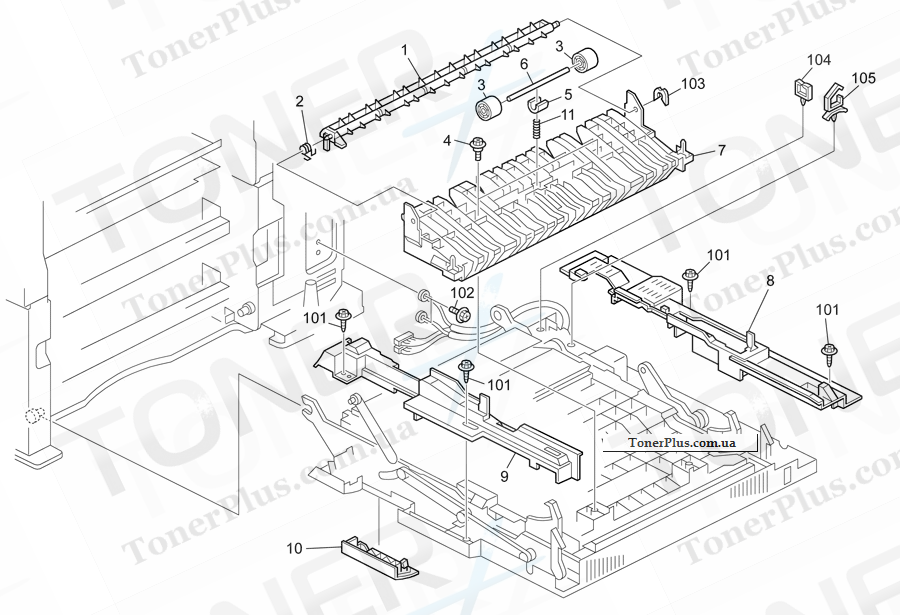

Каталог запчастей для Ricoh Aficio MP2352SP - Duplex Section 1

№	Номер партии	Описание	Примечание
1	AF02 5045	Gate Pawl: Lower
10	D120 4645	Inner Cover: Grip: Duplex Unit
101	0802 5319	Hexagon Head Tapping Screw: ES: 3x8
102	0451 3006N	Tapping Screw - 3x6
103	0805 0089	Retaining Ring - M4
104	1105 0518	Edge Saddle - LES-1010
105	1105 0551	Clamp: LES-0505
11	5205 4527	Spring - Exit
2	AA06 6414	Coil Spring: Gate Pawl: Lower
3	B300 4566	Roller Tension
4	GA14 3003	Screw: MM5: 2.5MM
5	AA08 0156	Bushing - M4
6	AA14 5818	Tension Roller Shaft
7	D120 4665	Guide Plate: Open And Close: Gate
8	D120 4628	Inner Cover: Rear
9	D120 4629	Inner Cover: Front
