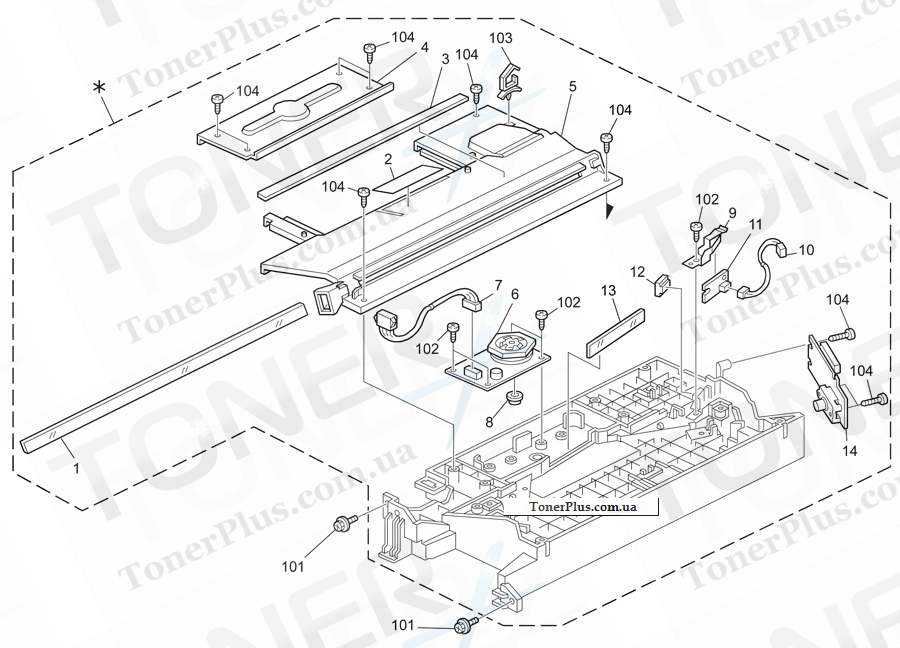

Каталог запчастей для Ricoh Aficio MP3351 - Laser Unit

Каталог запчастей для Ricoh Aficio MP3351 - Laser Unit
№ Номер партии Описание Примечание
* D019 1900 Imaging Unit
1 B206 1977 Shield Glass
10 D019 5222 Harness - Sync Detector
101 0451 3008N Tapping Screw - M3x8
102 0452 3008N Tapping Screw - M3x8
103 1105 0508 Harness Clamp - LWS-0711
104 0452 3010N Binding Self-Tapping Screw:3x10
11 D009 5320 MB4
11 D009 5325 Sync.Detector Board
12 G029 1975 Cylindrical Lens
13 G020 1937 Shield Glass - Polygon Morror Motor
14 D019 1919 Laser Diode Unit
2 G029 1980 Decal - LD
3 B206 1971 Supporting Plate:Cover:Imaging Unit
4 B090 1917 Cover:Polygon Scanner:Assy
5 B090 1938 Cover:Optical Housing
6 B209 1898 Polygon Mirror Motor
7 D019 5224 Harness - Polygon Mirror Motor
8 A232 1916 Collar-polygon Motor
9 A267 1944 Plate - Sync.detector Board
