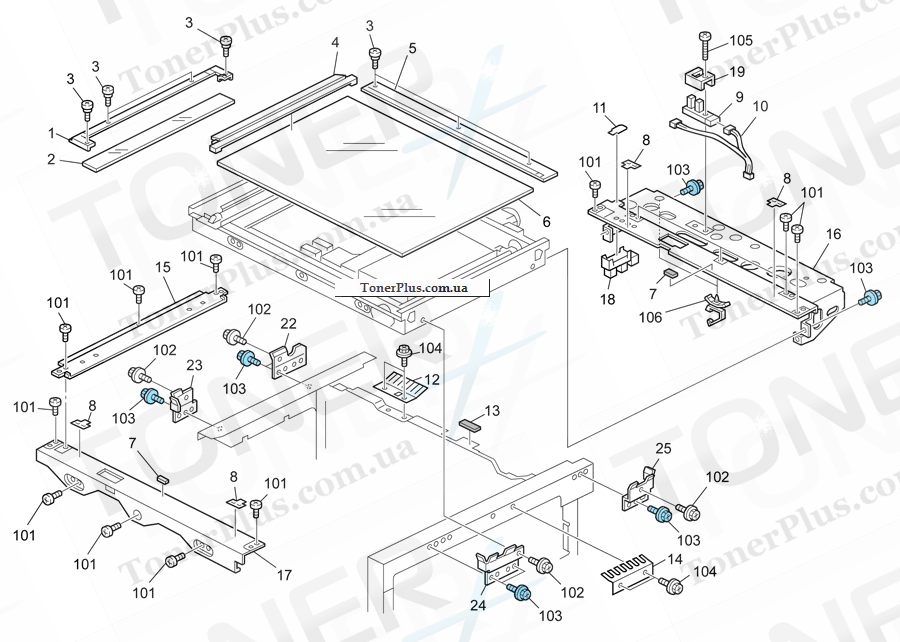

Каталог запчастей для Ricoh Aficio MP3351 - Scanner Section 1

№	Номер партии	Описание	Примечание
1	D019 1801	Scale:Left:A
1	B238 1801	Scale - Left (A)
10	D019 5250	Harness - Home Position Sensor
10	D020 5212	Harness:BCU:HPS/AKS:5V
101	0453 3006N	Tapping Screw - M3x6
102	0451 3008N	Tapping Screw - M3x8
103	0454 3006Q	Tapping Screw - M3x6
104	0451 3006N	Tapping Screw - 3x6
105	0314 0120N	Screw - M4x12
106	1105 0511	Harness Clamp - LWS-0306ZC
11	G570 1225	Sensor Shielding Plate
12	A267 1089	Grounding Plate - Upper Rear
13	D019 5849	Gasket
14	A267 1090	Grounding Plate - Lower Right
15	D019 1803	Bracket:Document Feeder
15	B238 1692	Bracket:Scale:Left:Assy
16	B238 1785	Frame:Rear (CS models) Added MB9
16	D019 1785	Frame:Rear (MS models) Added MB9
17	B238 1784	Frame:Front
18	AW02 0145	Photointerruptor:Flat
19	D019 1789	Cover:Sensor:AKS
2	B238 1795	Exposure Glass
3	B390 1759	Shaft:Scale
4	D019 1713	Scale:Left:B:NA:Assy
4	D019 1723	Scale:Left:B:Assy
4	B237 1713	Scale - Left B NA
4	B238 1713	Scale - Left (B)
5	D019 1751	Rear Scale
5	B229 1751	Scale - Inner Back
6	A250 1752	Exposure Glass
7	5442 1924	Exposure Glass Cushion
7	B093 1862	Cushion Glass
8	B238 1845	Seal:Exposure Glass
9	AW02 0146	Photointerruptor:Flat:PICH2mm:M4
