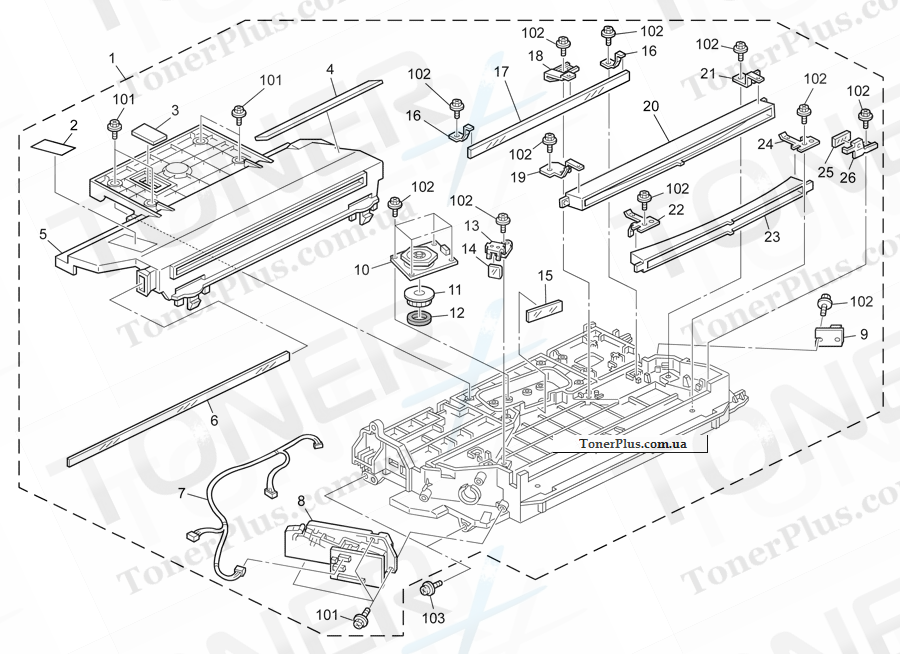

Каталог запчастей для Ricoh Aficio MP3500G - LASER UNIT (B291/B295/B296/B297)

№	Номер партии	Описание	Примечание
1	B298 1870	Laser Unit
10	AX06 0303	Polygon Scanner Motor
101	0450 3010N	Tapping Screw - M3x10
102	0450 3008N	Tapping Screw - M3x8
103	0951 3008N	Screw:Polished Roud:M3x8
11	B002 1898	Heat Sinker:Polygon Scanner:M:Assy
12	A232 1920	Seal - Heatsink
13	A232 1927	Cylindrical Lens Holder
14	G020 1966	Cylindrical Lens
15	AC01 5024	Shield Glass - Polygon Motor
16	A232 1926	Mirror Holder
17	AC03 0115	Mirror
18	A232 1925	Middle Mirror Holder
19	A232 1923	Front Holder - BTL
2	G029 1980	Decal - LD
20	G020 1969	BTL Lens
21	A232 1924	Rear Holder - BTL
22	A232 1921	Front Holder - F Theta Mirror
23	G020 1968	F Theta Mirror
24	A232 1922	Rear Holder - F Theta Mirror
25	GC03 0020	Sync. Detector Mirror
26	A232 1928	Holder - Sync. Detector Mirror
3	B077 1904	Cap:Cover:Optical Housing
4	B077 1907	Supporting Plate:Cover:Imaging Unit
5	A284 1904	Cover - Optical Housing
6	AC01 5025	Shield Glass
7	B213 5455	Harness:Imaging Unit
8	B298 1891	Laser Diode Unit
9	B213 5320	PCB:Sync Detector:SHARP
