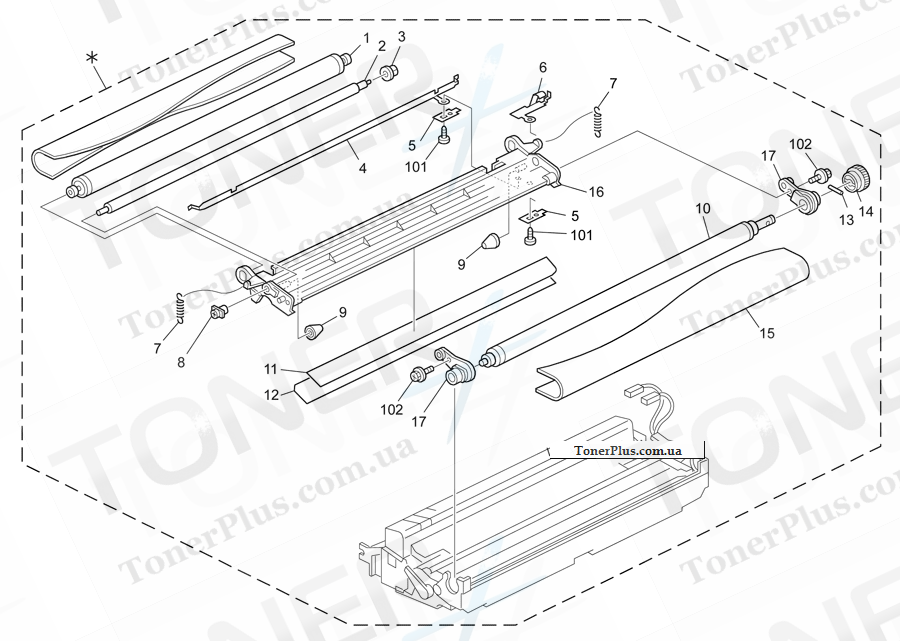

Каталог запчастей для Ricoh Aficio MP5001 - Transfer Belt Unit 1

№	Номер партии	Описание	Примечание
*	D009 3804	Transfer Unit
*	D009 3801	X/O MB23
1	A232 3885	Driven Roller - Transfer Unit
10	D009 3894	Drive Roller - Transfer Belt
101	0452 3006N	Binding Self-tapping Screw:3x6
102	0451 3006N	Tapping Screw - 3x6
11	D009 3954	Sheet:Preventfence:Transfer Belt
12	D009 3948	Scraper - Drive Roller
13	G024 1314	Pulley Pin
14	AB01 1282	Gear - 31Z
15	A232 3880	Transfer Belt
16	D009 3882	X/O MB5
16	D009 3883	Frame - Transfer Belt
17	D009 3893	Arm - Transfer Belt
2	B213 3889	Roller:Bias
3	AA08 2054	Bushing - M4
4	D009 3935	Earth Terminal - Transfer Belt
5	D009 3937	Terminal - Transfer Belt
6	D009 3936	X/O MB5
6	D009 3934	Bias Terminal - Transfer Belt
7	AA06 1020	Spring:Release:Transfer Belt
8	D009 3890	Front Bushing - Bias Roller
9	A232 3926	Transfer Belt Roller
