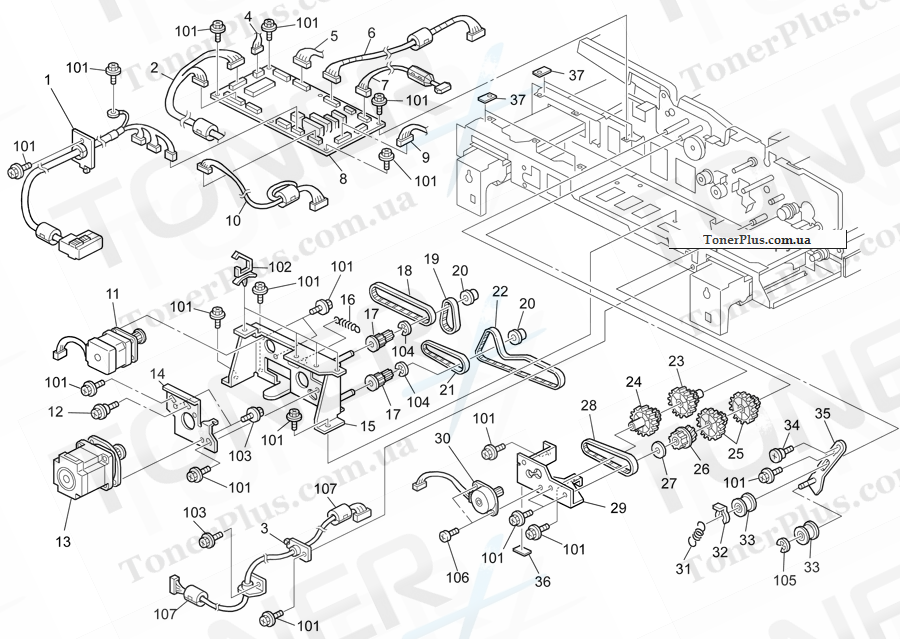

Каталог запчастей для Ricoh Aficio MP5500SP - DF DRIVE/ELECTRICAL 2

№	Номер партии	Описание

1	B477 5751	Interface Harness
10	B477 5721	CIS Harness
101	0451 3006N	Tapping Screw - 3x6
102	1105 0488	Harness Clamp
103	0451 4006N	Tapping Screw - 4x6
104	0720 0040E	Retaining Ring - M4
105	0720 0060E	Retaining Ring - M6
106	0353 0050N	Screw-m3x5
107	1607 0623	Ferrite Core - TFC-16-8-13
11	B477 3731	Exit Motor - DC 3.9W
12	AA14 3790	Screw:Contact Point
13	B477 3721	Scanning Motor- DC 7.4W
14	B477 3215	Scanning Motor Stay
15	B477 3211	Scanning Motor Bracket
16	AA06 0991	Tension Spring:Tension:Transport
17	B477 3217	Pulley
18	AA04 3330	Timing Belt:60S2M296
19	AA04 3331	Timing Belt:60S3M114
2	B477 5601	Registration Sensor Harness
20	5936 2321	Rubber Bushing - Vibration Damper
21	AA04 3329	Timing Belt:80S2M166
22	AA04 3332	Timing Belt:80S3M516
23	A806 2285	Gear - Z20/Z47
24	A806 2287	Gear - Z20/Z47
25	A806 2283	Gear - Z20/Z47
26	A806 2161	Timing Pulley - T30/Z20 S2M/M0.8
27	AA13 2152	Spacer - 8x20x1
28	B652 2347	Timing Belt:B40S2M158
29	B477 2334	Bracket:Motor:Base
3	B477 5765	Harness:Cis:LVDS
30	B652 2911	Stepper Motor:Base:Rise:Assy
31	B477 4141	Spring - 12.6n
32	5215 2621	Snap Ring - M6
33	B477 3175	Pulley
34	AA14 3789	Shaft:Cleaner
35	B477 3236	Tension:Peen
36	B477 2333	Motor Bracket Cushion
37	B477 5521	Spacer:PCB
4	B477 5611	Detection Sensor Harness
5	B477 5625	Harness:Sensor:Original Sensor
6	B477 5735	Harness:ADF-CIS:Control
7	B477 5711	Pick-up Motor Harness
8	B477 5585	PCB:ADF:Assy
9	B477 5691	Paper Feed Motor Harness
