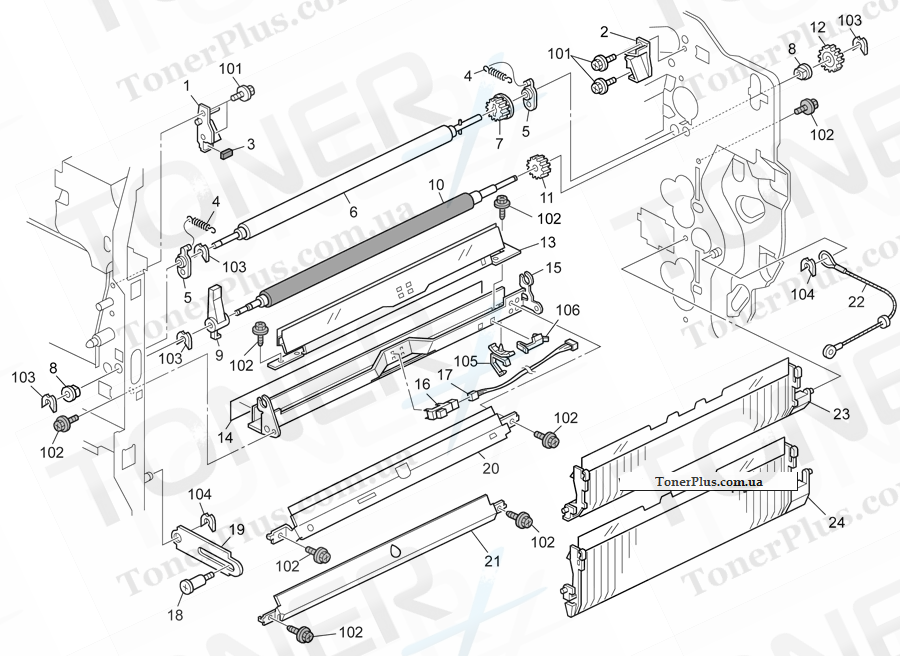

Каталог запчастей для Ricoh Aficio MPC4500 - Paper Registration


Каталог запчастей для Ricoh Aficio MPC4500 - Paper Registration
Номер партии Описание Примечание
1 B223 6311 Positioning Guide - Front
10 B238 2652 Registration Roller - Drive
101 0451 3006N Tapping Screw - 3x6
102 0454 3006Q Tapping Screw - M3x6
103 8 050 089 Retaining Ring - M4
104 8 050 088 Retaining Ring - M6
105 11 050 511 Harness Clamp - LWS-0306ZC
106 11 050 643 Clamp - RFC-14V0
11 B238 2655 Gear - 16Z
12 B238 2656 Gear - 30Z
13 B238 2670 Cleaner Bracket
14 B238 2622 Cover - Remove Paper Dust
15 B238 2621 Stay
16 AW01 0107 Paper Feed Sensor
17 B223 2599 Harness:Registration Sensor
18 AA14 3404 Stepped Screw - M4
19 B223 4523 Link:Stopper
2 B223 6312 Positioning Guide - Rear
20 B223 2570 Guide Plate:Registration:Right
21 B238 2612 Registration Guide Plate - Left
22 B223 4524 Wire:Stopper:Dia1.5
23 B223 2835 Guide Plate
24 B223 2840 Guide Plate No.2
3 B223 6315 Cushion
4 B238 2676 Tension Spring
5 B238 2675 Registration Roller Bushing
6 B238 2661 Registration Roller - Driven
7 B238 2657 Gear - 18Z
8 AA08 2101 Bushing - 6x10x6
9 B223 2558 Registration Roller Knob
