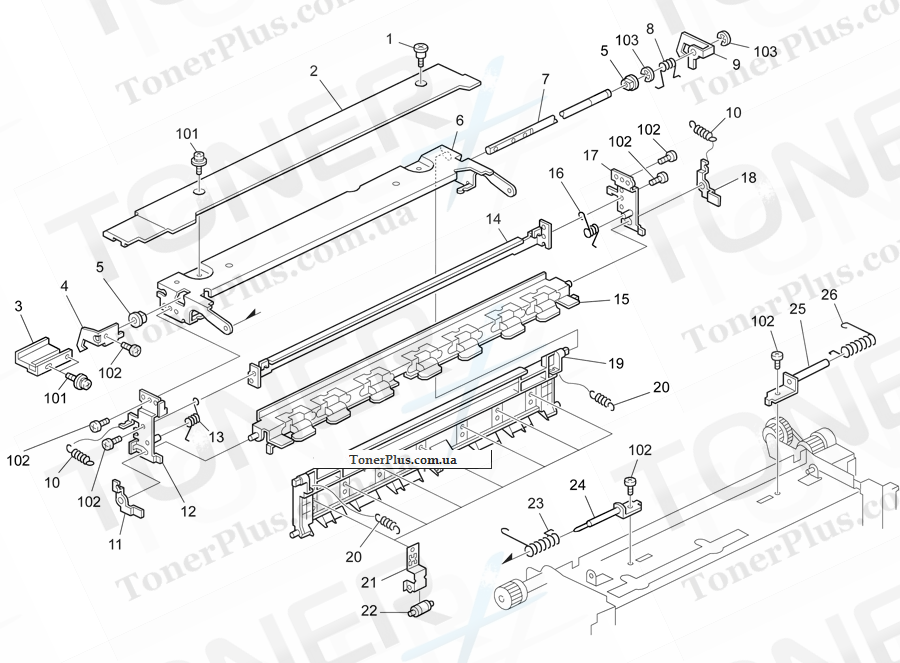

Каталог запчастей для Ricoh Aficio MPC7500SP - Fusing Unit 4


Каталог запчастей для Ricoh Aficio MPC7500SP - Fusing Unit 4
Номер партии Описание Примечание
1 5206 2684 Shoulder Screw - M3
10 AA06 1019 Tension Spring - Stripper Plate
11 D014 4324 Front Lever - Stripper Plate
12 D014 4151 Front Bracket - Stripper Plate
13 AA06 6382 Front Torsion Spring - Stripper
14 D014 4307 Stay - Bracket
15 D014 4300 Stripper Plate Unit
16 AA06 6383 Rear Torsion Spring - Stripper
17 D014 4154 Rear Bracket - Stripper Plate
18 D014 4325 Rear Lever - Stripper Plate
19 D014 4158 Upper Guide Plate - Fusing Exit
2 D014 4127 Guide Plate - Paper Exit Unit
20 AA06 1018 Tension Spring
21 D014 4167 Roller Holder - Fusing Exit
22 D014 4327 Roller - Fusing Exit
23 AA06 6682 Torsion Spring - Front
24 B132 4127 Bracket:Torsion Spring:Peen
25 D014 4148 Spring Bracket - Separation
26 AA06 6683 Torsion Spring - Rear
3 B132 4167 Grip:Oil Application Unit:Fiber
4 D014 4155 Front Lever - Paper Exit Unit
5 AA08 2101 Bushing - 6x10x6
6 D014 4150 Bracket - Exit Unit
7 B132 4163 Shaft:Oil Application Unit
8 B132 4197 Torsion Spring:Lever
9 D014 4156 Rear Lever - Paper Exit Unit
