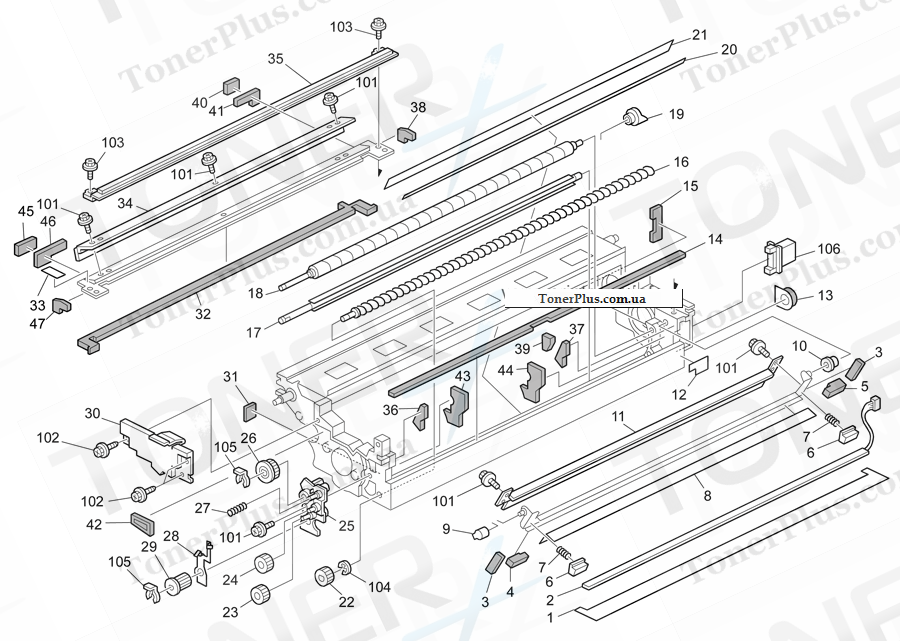

| 1 |
D014 2376 |
Sheet:Discharge Lamp |
|
|
| 10 |
D014 2302 |
Bushing:Blade:Rear |
|
|
| 11 |
D014 2352 |
Cleaning Blade |
|
|
| 12 |
D014 2479 |
Cover:Discharge Lamp |
|
|
| 13 |
D014 2269 |
Seal - Discharge Used Toner |
|
|
| 14 |
D014 2276 |
Seal - Toner Recycling |
|
|
| 15 |
D014 2268 |
Shield - Rear Case |
|
|
| 16 |
D014 2281 |
Transport Screw |
|
|
| 17 |
D014 2470 |
Collection Coil:Assy |
|
|
| 18 |
D014 2335 |
Drum Lubricant Supply Brush |
|
|
| 19 |
D014 2338 |
Joint PCU |
|
|
| 2 |
D014 2278 |
Discharge Lamp:Led Array:25MM |
|
|
| 20 |
D014 2267 |
Tape:Entrance Seal |
|
|
| 21 |
D014 2266 |
Entrance Seal |
|
|
| 22 |
D014 2286 |
Gear - 23Z |
|
|
| 23 |
D014 2345 |
Idler Gear - 23Z |
|
|
| 24 |
D014 2346 |
Idler Gear - 22Z |
|
|
| 25 |
D014 2340 |
Brush Roller Holder |
|
|
| 26 |
D014 2337 |
Gear - 27Z |
|
|
| 27 |
D014 2307 |
Spring:Earth:Brush Roller |
|
|
| 28 |
D014 2347 |
Ground Plate - Brush Roller |
|
|
| 29 |
D014 2333 |
Gear - 17Z |
|
|
| 3 |
D014 2299 |
Seal - Blade Bracket |
|
|
| 30 |
D014 2277 |
Lever - PCU |
|
|
| 31 |
D014 2270 |
Shield - Front Middle Case |
|
|
| 32 |
D014 2433 |
Seal - Blade Guide Plate |
|
|
| 33 |
D014 2377 |
Upper Seal - Blade Guide Plate |
|
|
| 34 |
D014 2368 |
Lubricant Supply Blade |
|
|
| 35 |
D014 2365 |
Stayc - PCU Rail |
|
|
| 36 |
D014 2371 |
Front Seal - Blade Guide Plate |
|
|
| 37 |
D014 2374 |
Rear Seal - Blade Guide Plate |
|
|
| 38 |
D014 2374 |
Rear Seal - Blade Guide Plate |
|
|
| 39 |
D014 2288 |
Rear Seal - Frame |
|
|
| 4 |
D014 2301 |
Front Seal - Blade Bracket |
|
|
| 40 |
D014 2438 |
Seal:Blade:Apply:Rear |
|
|
| 41 |
D014 2439 |
Seal:Blade:Apply:Rear Middle |
|
|
| 42 |
D014 2271 |
Front Seal - Duct |
|
|
| 43 |
D014 2279 |
Seal - Front Frame |
|
|
| 44 |
D014 2287 |
Seal - Rear Frame |
|
|
| 45 |
D014 2436 |
Seal:Blade:Apply:Front |
|
|
| 46 |
D014 2437 |
Seal:Blade:Apply:Front Middle |
|
|
| 47 |
D014 2371 |
Front Seal - Blade Guide Plate |
|
|
| 5 |
D014 2300 |
Raer Seal - Blade Bracket |
|
|
| 6 |
D014 2306 |
Spring Holder |
|
|
| 7 |
D014 2305 |
Compression Spring - Blade |
|
|
| 8 |
D014 2297 |
Seal - Blade Holder |
|
|
| 9 |
D014 2303 |
Bushing:Blade:Front |
|
|
