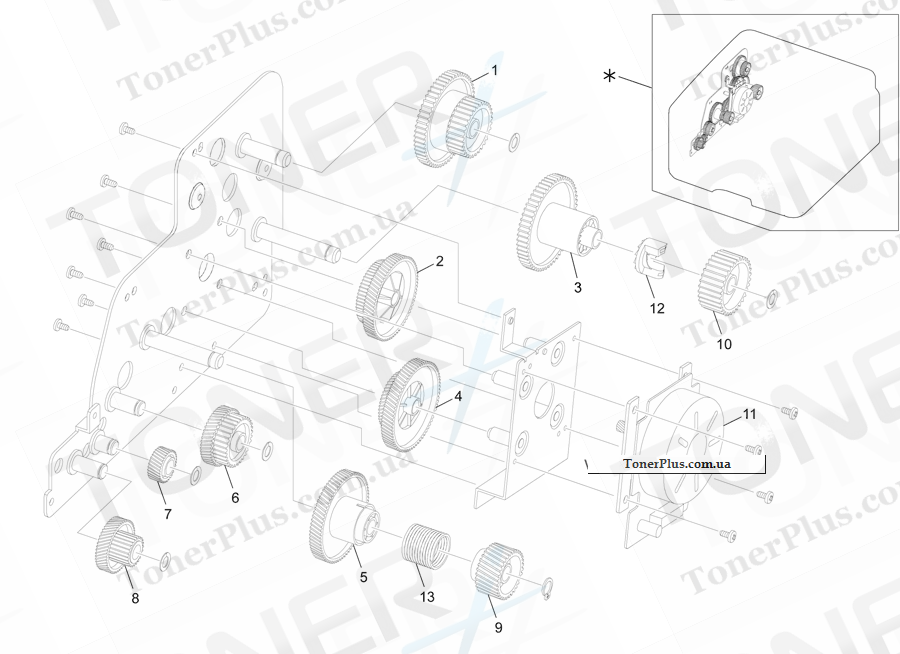

Каталог запчастей для Ricoh Aficio SP3300D - Drive Section

Каталог запчастей для Ricoh Aficio SP3300D - Drive Section
№ Номер партии Описание Примечание
* M000 1170 Drive Unit
1 M000 1134 Gear:Exit:61/28
10 M000 1131 Gear:Fuser:31
11 M000 1026 Motor:Main
12 M000 1163 Hub-Clutch
13 M000 1021 Spring Clutch
2 M000 1127 Gear:83/40
3 M000 1128 Gear:Fuser:61
4 M000 1125 Gear:89/55
5 M000 1129 Gear:OPC:89
6 M000 1124 Gear:Feed:56/25
7 M000 1133 Gear:Pick-up:31
8 M000 1139 Gear:52/18
9 M000 1151 Gear:OPC Clutch:29
