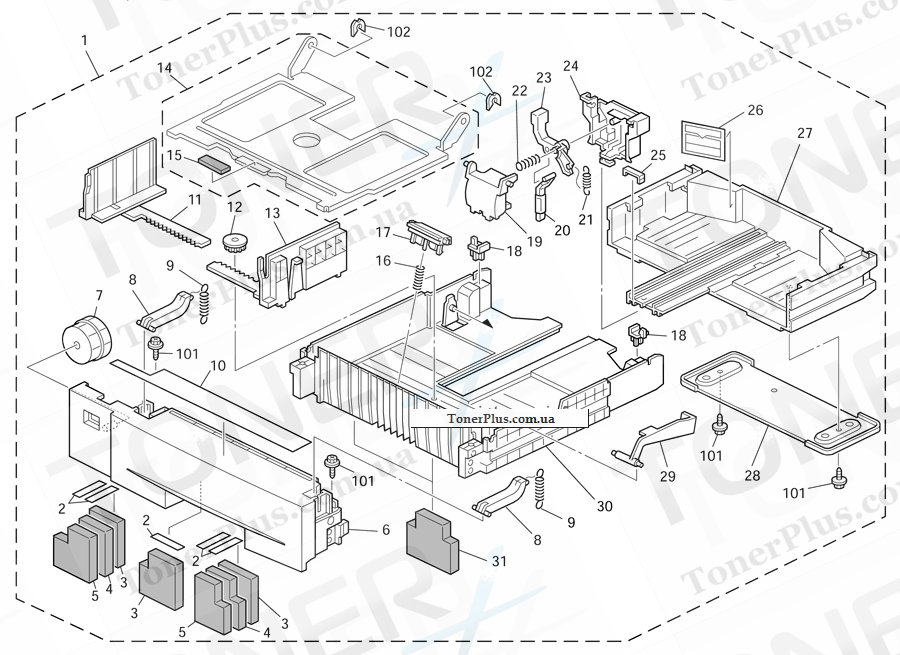

Каталог запчастей для Ricoh Aficio SP4210N - Paper Tray


Каталог запчастей для Ricoh Aficio SP4210N - Paper Tray
Номер партии Описание Примечание
1 G175 3050 Paper Tray Unit
10 G096 3144 Paper Set Direction Label
11 G096 3055 Left Side Fence
12 A267 2869 Gear - 16Z
13 G096 3056 Right Side Fence
14 G175 2818 Tray Bottom Plate
15 G555 3069 Base pad
16 G096 3084 Separation Compression Spring
17 G096 3066 Friction Pad Adhesion
18 G029 2609 Cassette Protection
19 G096 3088 End Fence Pressure
2 G096 3094 Tape - Sheet: Tray
20 G096 3087 End Fence Protection
21 G096 3090 End Fence Tension Spring 12N
22 G096 3089 End Fence Compression Spring 3.5N
23 G096 3086 End Fence Lever
24 G096 3085 End Fence
25 G096 3063 Paper Tray Cap
26 G096 3078 Protection Label
27 G096 3060 Rear Paper Tray
28 G096 3065 Paper Tray Supporting Plate
29 G096 3070 Paper Volume Sensor Board
3 G360 3091 Tray Sheet 1
30 G096 3051 Paper Tray
31 G175 3058 Tray sheet
4 G360 3092 Tray Sheet 2
5 G360 3093 Tray Sheet 3
6 G096 3052 Paper Tray Cover
7 G096 3075 Paper Size Sensor Board
8 G096 3071 Paper Tray Arm
9 G096 3083 Spring Tension
