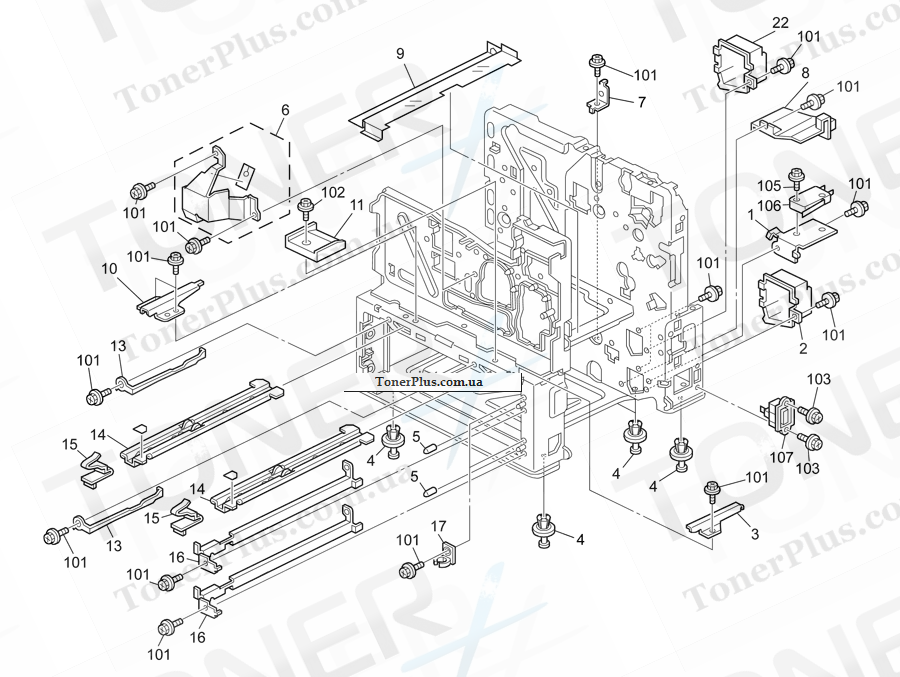

Каталог запчастей для Ricoh Aficio SP8100DN - FRAME SECTION 2

№	Номер партии	Описание	Примечание
1	B077 2882	Bracket:Micro Switch
10	B077 1266	Bracket:Hinge:Left
101	0451 3006N	Tapping Screw - 3x6
102	0451 3005P	Tapping Screw - M3x5
103	0451 3008H	Tapping Screw - M3x8
104	0801 0149	Philips Pan Head Screw - M4x6
105	0451 3014N	Tapping Screw:3x14
106	1204 2529	Switch - V-5F912DN
107	1102 8504	Connector
11	G065 3275	Guide - Development Unit
13	B077 1023	Stopper:Grip
14	B077 1021	Grip:Adhesion
15	A230 2693	Front Stopper
16	B213 2990	Supporter:Paper Tray
17	A232 2995	Front Positioning Guide
2	A232 2692	Cover - Paper Drive
3	B213 1267	Bracket:Hinge:Right
4	B101 1097	Rubber Foot:H5
5	B004 2995	Cap - Positioning
6	B213 1968	Shadeing Plate
7	B077 1053	Bracket:Stay:Lengthwise:Rear
8	B004 1320	Base Cover
9	B004 2597	Sheet - Separation Plate
