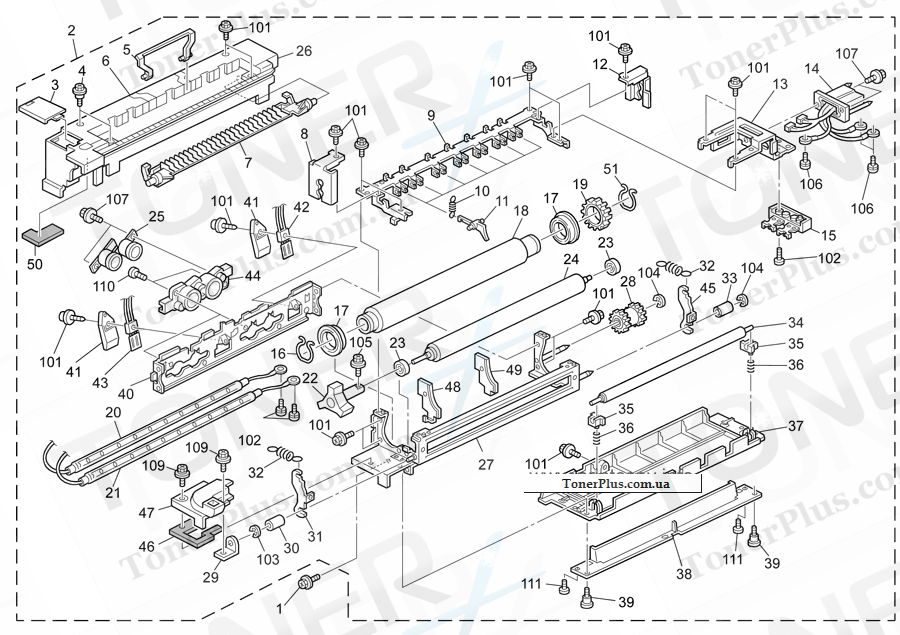

Каталог запчастей для Ricoh Aficio SP8100DN - FUSING UNIT

Каталог запчастей для Ricoh Aficio SP8100DN - FUSING UNIT
№ Номер партии Описание Примечание
1 G034 2993 Flanged Hexagonal Head Bolt - M3x6
10 AA06 0948 Tension Spring:Stripper Pawls:50mn
101 0451 3006N Tapping Screw - 3x6
102 0950 4006N Screw - M4X6
103 0720 0030E Retaining Ring - M3
104 0720 0040E Retaining Ring - M4
105 0804 6075 Hexagonal Bolt - M3x8
106 0954 3012N Screw - M3X12
107 0451 3008N Tapping Screw - M3x8
108 0453 3006N Tapping Screw - M3x6
109 0804 6123 Hexagonal Bolt:W/washer:M3x8
11 AE04 4056 Stripper Pawls
110 0957 3012N Screw - M3X12
111 0353 0080N Screw:M3X8
12 B077 4115 Socket:Heater:Rear
13 B077 4092 Bracket:Drawer:Fusing:Welding
14 B213 4217 Harness:Fusing:NA
14 B213 4227 Harness:Fusing:EU
15 B004 4095 Terminal Plate - Fusing Unit
16 A232 4064 C Ring - Hot Roller
17 AE03 0047 Ball Bearing - 30x42x7
18 AE01 1115 Hot Roller:T0.4:Hb
19 AB01 3882 Gear - 40Z
2 G147 7720 Fusing Unit:Eu
2 G147 7320 Fusing Unit:Na
20 AX44 0199 Heater:230V:650W:215mm
20 AX44 0198 Heater:120V:650W:215mm
21 AX43 0072 Heater - 120V 550W 335mm
21 AX43 0073 Heater-230V 550W 335mm
22 AG05 0094 Knob:Fusing
23 AE03 0048 Ball Bearing - 8x22x7
24 AE02 0125 Pressure Roller Mm32 Assy
25 G065 4156 Thermostat:Assy
26 B213 4131 Fusing Cover:Printing
27 B213 4171 Frame:Fusing:Assy
28 AB01 4046 Gear - 25Z
29 B082 4054 Positioning Plate Front
3 B004 4133 Cap- Fusing Cover
30 A232 4057 Front Collar - Pressure Lever
31 B213 4263 Lever:Pressure:Front
32 AA06 0840 Pressure Spring - 29n
33 A232 4058 Rear Collar - Pressure Lever
34 AE04 2039 Fusing Cleaning Roller
35 AA08 2073 Roller Busing
36 AA06 3668 Compression Spring:Fusing Cleaning
37 B082 4123 Fusing Entrance Guide Plate:Upper
38 B004 4126 Lower Entrance Guide Plate
39 AA14 3792 Screw:Drawer
4 AA14 3520 Shoulder Screw - M3
40 G065 4056 Stay:Fusing:Thermostat
41 B004 4087 Plate- Thermistor
42 AW10 0112 Thermistor:Fusing:Inner Back
43 AW10 0111 Thermistor:Fusing:Middle
44 G065 4155 Housing:Thermostat
45 B213 4264 Lever:Pressure:Rear
46 B082 4153 Shield:Duct:Fusing:Front Lower:Long
47 B082 4152 Duct:Fusing:Front Lower
48 B082 4105 Spacer:Frame:Front
49 B082 4106 Spacer:Frame:Rear
5 G065 4136 Handle - Fuusing Unit
50 B082 4144 Shield:Fusing Cover
51 G065 4140 C Ring - Hot Roller - Rear
6 B213 4131 Fusing Cover:Printing
7 B004 4135 Guide Plate-fusing Exit
8 B082 4111 Socket:Heater:Front
9 B077 4081 Frame:Fusing:Upper
