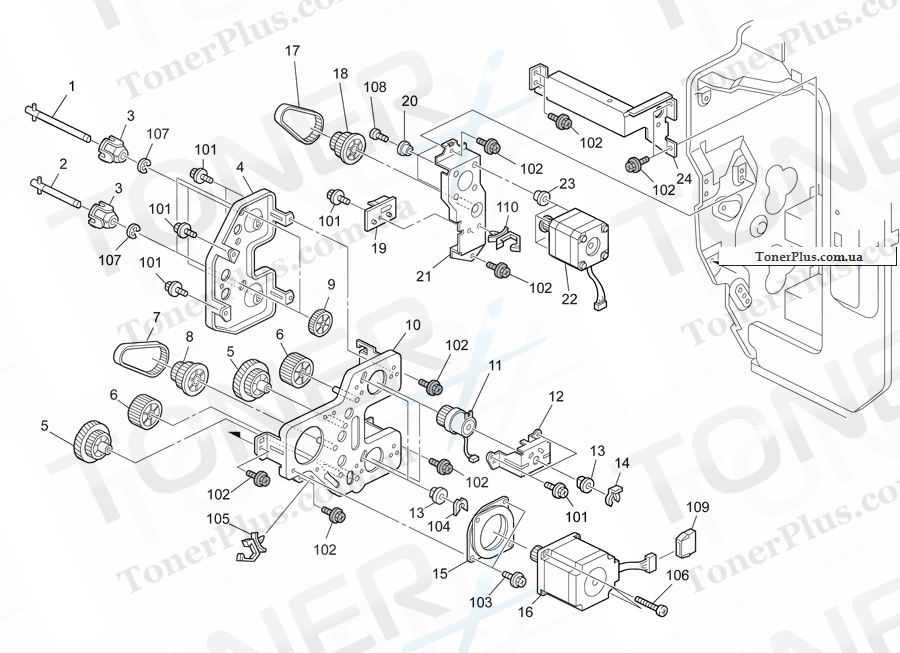

Каталог запчастей для Ricoh Aficio SP8200DN - Drive Section 4

№	Номер партии	Описание	Примечание
1	B223 1189	Feed Drive Shaft
10	B223 1180	Bracket:Paper Feed
11	AX20 0289	Magnetic Clutch - 32Z
12	B223 1187	Magnetic Clutch Bracket
13	AA08 0346	Bushing:Flange Type:DIA6
14	5447 2681	Snap Ring
15	AA16 1164	Cushion:Stepper Motor
16	B223 1188	Stepper Motor DC24V
17	B700 2649	Timing Belt:40S2M144
18	AB01 7493	Gear Pulley
19	B223 2694	Guide:Gear
2	B223 1183	Grip Shaft
20	B044 1825	Collar
21	B223 2691	Bracket:Stepper Motor
22	B223 2685	Stepper Motor:DC24V 26.4W
23	AA10 1021	Rubber Bushing - 6 45HS
24	D009 1088	Grip Bracket - Right Rear
3	B223 1186	Drive Joint
4	B223 1354	Drum Stay:Drive Unit
5	AB01 7699	Gear - 33Z/44Z
6	AB01 1258	Gear - 38Z
7	AA04 3585	Timing Belt:40S3M162
8	AB03 0781	Timing Pulley - 28Z/30T
9	AB01 1259	Gear - 32Z
