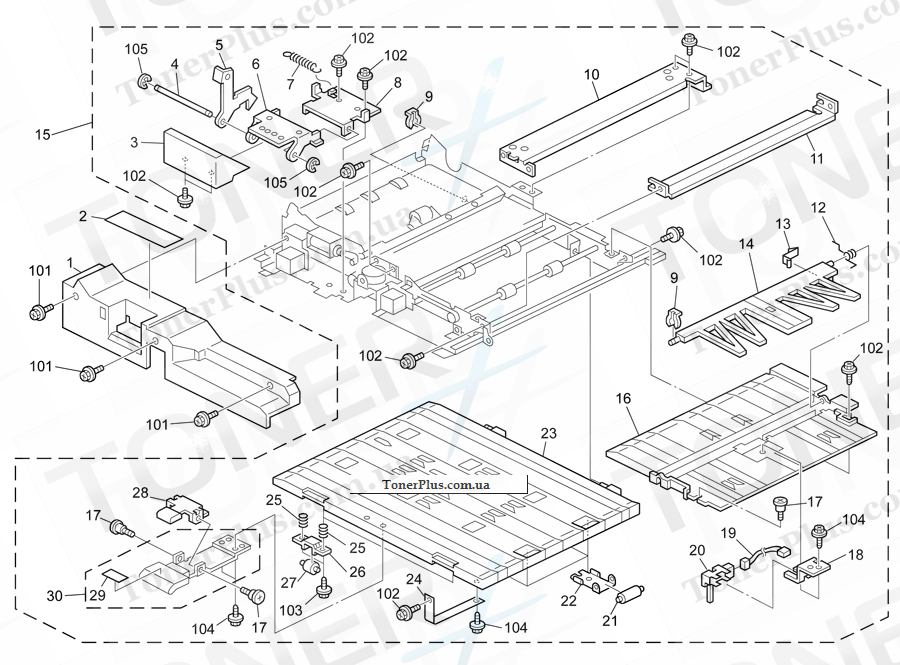

Каталог запчастей для Ricoh Aficio SP9100DN - DUPLEX UNIT 1

№	Номер партии	Описание

1	B247 4799	Inner Cover
10	B065 4987	Upper Duplex Stay
11	B140 4800	Exit Duplex Guide Plate
12	AA06 6353	Spring
13	B065 4728	Spring Plate - Right Table Guide
14	B065 4726	Right Guide Table
15	B247 4500	Duplex Unit
16	B065 4725	Right Duplex Bracket
17	AA14 3811	Stepped Screw - M3x4
18	B065 4727	Right Sensor Bracket
19	B247 4590	Harness - Duplex
2	B065 4797	Caution Decal - Duplex
20	AW02 0149	Paper Feed Sensor
21	AF02 2077	Driven Roller
22	B065 4731	Spring Plate - Driven Roller
23	B065 4730	Lower Transport Guide Plate
24	A096 4928	Guide Plate Band
25	AA06 3581	Compression Spring
26	A229 4727	Guide Plate Pressure Holder
27	AF02 2067	Guide Stopper Roller
28	B065 4933	Guide Plate Lever Hook
29	B065 4867	Decal - Guide Plate Lever
3	B247 4674	Release Grip
30	B065 4531	Guide Plate Lever
4	B247 4673	Shaft:Lever:Release
5	B065 4671	Duplex Lock Arm
6	B065 4675	Duplex Release Bracket
7	AA06 2320	Spring
8	B065 4672	Release Lever Bracket
9	5447 2681	Snap Ring
