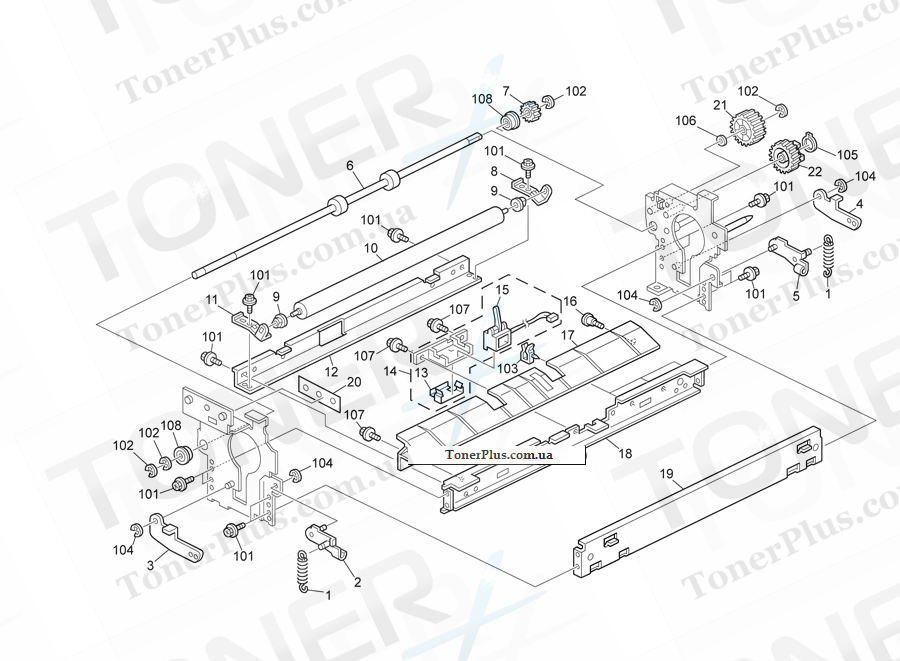

Каталог запчастей для Ricoh Aficio SP9100DN - FUSING UNIT 4

№	Номер партии	Описание

1	AA06 0893	Spring
10	AE04 2052	Cleaning Roller
11	B065 4161	Left Support Bracket
12	B065 4160	Cleaning Roller Guide Plate
13	B065 4141	Spring Plate - Switch
14	B065 4139	Switch Holder
15	AW20 0010	Paper Feed Sensor
16	AA14 3810	Development Cover Screw
17	B065 4140	Lower Guide Plate - Exit
18	B065 4114	Left Stay
19	B065 4112	Right Stay
2	B247 4131	Lever:Release:Front:Assy
20	B065 4129	Sheet:Fiber:Side Plate
21	AB01 2318	Idler Gear
22	AB01 2317	Fusing Drive Gear
3	B065 4177	Front Pressure Lever
4	B065 4178	Rear Pressure Lever
5	B247 4147	Lever:Release:Pressure:Rear:Assy
6	AF04 0055	Fusing Exit Roller
7	AB01 2319	Exit Gear
8	B065 4164	Right Support Bracket
9	AE03 1024	Bushing - M4x7
