Samsung SCX5737FW
4. FUSER

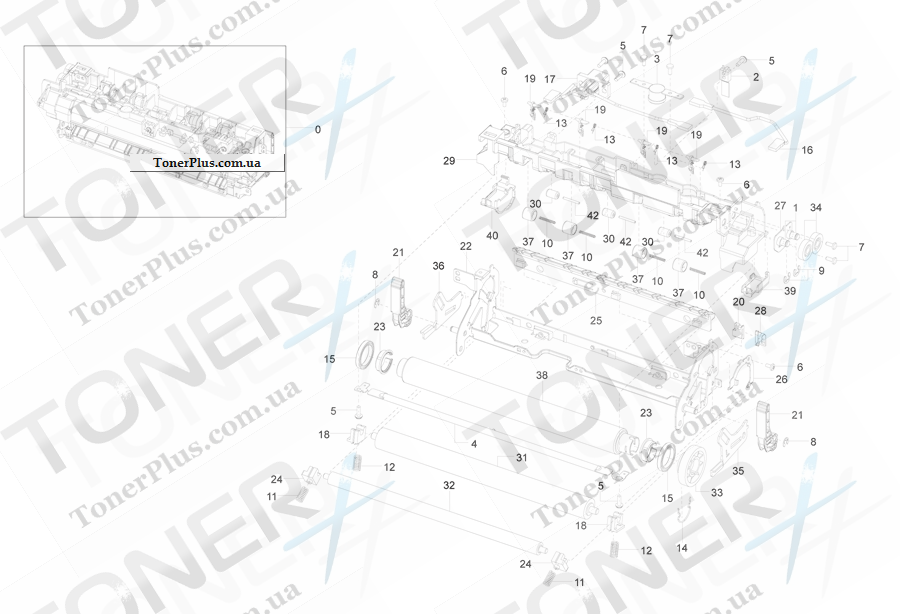

Каталог запчастей для Samsung SCX5737FW - FUSER
№
Номер партии
Описание
Примечание
0
JC91-01023A
FUSER
110V
0
JC91-01024A
FUSER
220V
1
0205-001080
GREASE-BEARING
10
6107-001188
SPRING-ETC
11
6107-001246
SPRING-CS
12
6107-001267
SPRING-CS
13
6107-002817
SPRING-ETC
14
6107-002818
SPRING-ETC
15
6601-001725
BEARING-BALL
16
JC39-01487A
HARNESS-FUSER JOINT
17
JC39-01488A
HARNESS-FUSER CON
18
JC61-01960A
BUSH-PR_1ST
19
JC61-02154A
GUIDE-CLAW
2
1404-001640
THERMISTOR-NTC ASSY
20
JC61-02631A
GUIDE-GROUND_PR
21
JC61-04085A
HOLDER-JAM
22
JC61-04092A
FRAME-FUSER
23
JC61-04093A
BUSH-HR
24
JC61-04095A
BUSH-PR_2ND
25
JC61-04096A
GUIDE-INPUT
26
JC61-04114A
BRACKET-BEARING
27
JC61-04122A
BRACKET-GEAR
28
JC63-02885A
GROUND-PR_M
29
JC63-02899A
COVER-FUSER
3
4712-001091
THERMOSTAT
30
JC66-01312A
ROLLER-IDLE
31
JC66-01663A
ROLLER-PRESSURE
32
JC66-01664A
ROLLER-PRESSURE_2ND
33
JC66-02775A
GEAR-FUSER
34
JC66-02776A
GEAR-IDLE_EXIT
35
JC66-02795A
LEVER-LINK_JAM_L
36
JC66-02796A
LEVER-LINK_JAM_R
37
JC66-02844A
ROLLER-IDLE_EXIT
38
JC66-02846A
ROLLER-HEAT
39
JC67-00498A
CAP-LAMP_L
4
4713-001565
LAMP-HALOGEN
220V
4
4713-001566
LAMP-HALOGEN
110V
40
JC67-00499A
CAP-LAMP_R
41
JC68-01581C
LABEL-CAUTION
42
JC70-20901A
IEX-SHAFT IDLE,F/UP
5
6003-000196
SCREW-TAPTYPE
6
6003-000269
SCREW-TAPTYPE
7
6003-000282
SCREW-TAPTYPE
8
6044-000125
RING-E
9
6044-000231
RING-E
