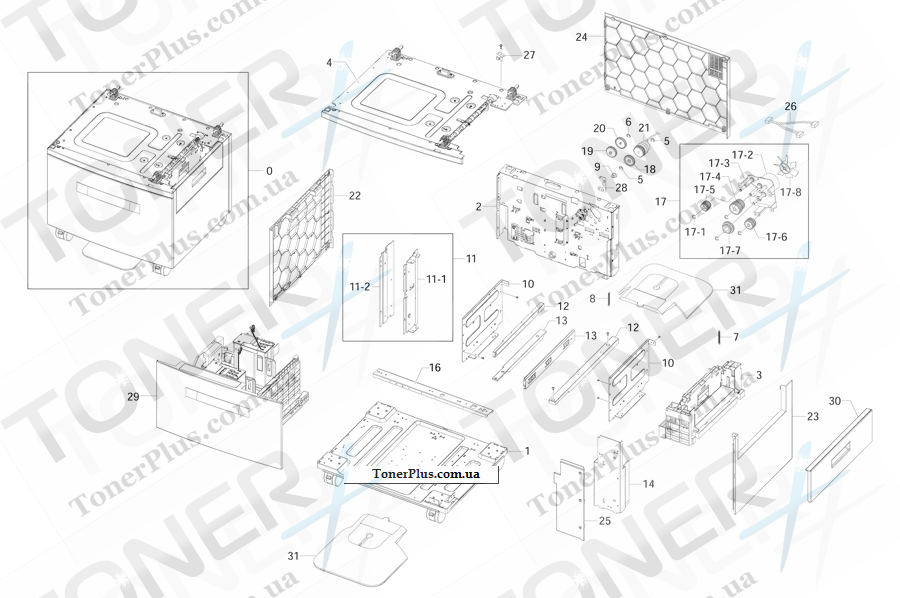

Каталог запчастей для Samsung SCX6545NX HCF - ELA HOU-HCF

№	Номер партии	Описание

0	JC96-04852A	ELA HOU-HCF
1	-	SUB PLATE-BOTTOM_HCF
1	-	SUB PLATE-BOTTOM_HCF
10	-	PLATE-BEAM_HCF
10	-	PLATE-BEAM_HCF
11	-	MEA UNIT-LEFT_HCF
11	-	MEA UNIT-LEFT_HCF
11-1	-	PLATE-SUP LEFT
11-1	-	PLATE-SUP LEFT
11-2	-	PLATE-SUP BRKT L
11-2	-	PLATE-SUP BRKT L
12	-	GUIDE-RAIL SIDE_HCF
12	-	GUIDE-RAIL SIDE_HCF
13	-	GUIDE-RAIL_HCF
13	-	GUIDE-RAIL_HCF
14	-	PLATE-SUP RIGHT
14	-	PLATE-SUP RIGHT
15	JC81-06067A	AS-SLIDE RAIL HCF
16	JC61-01312A	PLATER-P_BEAM BASE
17	JC96-05278A	ELA HOU-SCF DRIVE
17-1	6044-000231	RINGE-E
17-2	JC31-00028B	MOTOR PICKUP SCF
17-3	JC61-02704A	BRACKET-SCF DRIVE
17-4	JC66-00965A	GEAR-M_FD IDLE A SCF
17-5	JC66-02011A	GEAR-FEED SCF
17-6	JC66-00967A	GEAR-M_PU IDLE A SCF
17-7	JC66-00968A	GEAR-M_PU IDLE C SCF
17-8	JC72-00825A	PMO-IMPELLER_DRV
18	JC66-00973A	GEAR-M_PICKUP IDLE B
19	JC66-00974A	GEAR-M_FORWARD
2	-	SUB UNIT-REAR_HCF
2	-	SUB UNIT-REAR_HCF
20	JC66-00975A	GEAR-M_RETARD
21	JC66-00994A	CLUTCH-5K Z32
22	-	COVER-LEFT_HCF
22	-	COVER-LEFT_HCF
23	-	COVER-RIGHT_HCF
23	-	COVER-RIGHT_HCF
24	-	COVER-REAR_HCF
24	-	COVER-REAR_HCF
25	-	COVER-RIGHT_FRONT
25	-	COVER-RIGHT_FRONT
26	JC39-00549A	CBF HARNESS-SCF_CLUT
27	JC63-00824A	GROUND-P-DOOR INNER
28	JC63-00833A	GROUND-P-SHAFT RETARD
29	JC81-06068A	AS- UNIT CASSETTE HCF
3	JC81-06298A	AS-UNIT FRAME RIGHT
30	JC63-00769B	COVER-M_DOOR SIDE SCF
31	-	STABILITY FOOT-SMALL
31	-	STABILITY FOOT-SMALL
32	-	RUBBER-DROP
32	-	RUBBER-DROP
33	JC67-00328A	CAP-CLUTCH SCF
4	-	ELA HOU-UPPER_HCF
4	-	ELA HOU-UPPER_HCF
5	6044-000125	RING-E, ID4
6	6044-000159	RING-C, ID3
7	6107-001258	SPRING-ES
8	6107-001259	SPRING-ES
9	JC61-00423A	BUSH-6D
