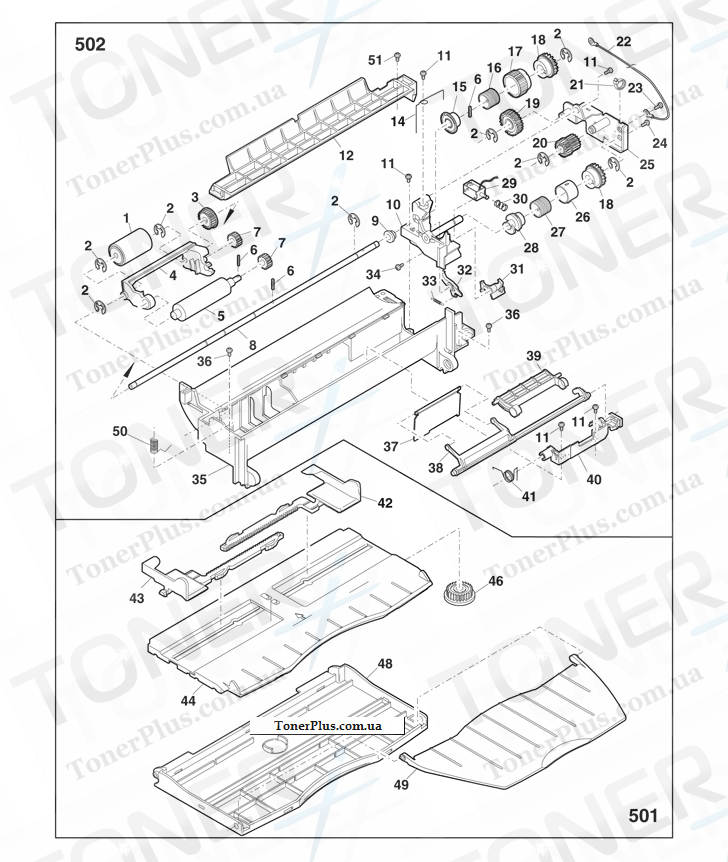

Каталог запчастей для Toshiba e-Studio 202s - MULTI MANUAL PAPER FEED UNIT

№	Номер партии	Описание

1	6LA58692600	MPF ROLLER
10	41330514300	F BRACKET
11	6LA58793200	Screw M3X8
12	6LA58754500	DUP UPPER GUIDE
14	41330527600	ARM C SPRING
15	41330514200	CLUTCH BOSS
16	41330528900	CLUTCH SPRING A
17	41330550700	PIPE A
18	6LA58624400	CAM BOSS A1R
19	41330537300	GEAR 27T
2	6LA58925000	E-ring
20	41330537500	GEAR 20.20MXL
21	41330513400	WIRE BAND
22	6LA58622300	M FEED GND WH
23	6LA58794400	Screw M3X6
24	6LA58792700	Screw M3X6
25	41330503000	PAPER PLATE 1
26	6LA58700800	CAM CLH SLEEVE
27	41330529000	MF CLUTCH SP B
28	41330514000	CAM BOSS B
29	6LA58805700	MF solenoid
3	41330537600	GEAR 20T
30	41330529100	SPRING B
31	41330557700	MPF PAWL B
32	41330557600	MPF PAWL A
33	41330529300	PAWL A SPRING
34	6LA58792200	Screw M3X8
35	6LS10153000	MULTI FRAME
36	6LA58793800	Screw M4X12
37	41330521800	STOPPER PLATE
38	41330524400	ARM B
39	41330524300	ARM A
4	6LA58726700	ARM C
40	6LA58750900	ARM HINGE
41	41330527500	ARM C SPRING
42	6LS10297000	MB SIDE GUIDE R
43	6LS10296000	MB SIDE GUIDE L
44	6LS10284000	MULTI TRAY FRONT COVER
46	41330535600	M FEED GEAR
48	6LS10177000	MULTI TRAY 1
49	6LS10178000	MULTI TRAY 2
5	6LA58801400	PICK-UP ROLLER
50	41330528400	SPRING
501	6LS10084000	MULTI MANUAL PAPER FEED T
502	6LS10031000	MULTI MANUAL PAPER FEED U
51	6LA58793300	Screw M3X10
6	6LA58922000	Spring pin 2X7
7	41330537400	GEAR 16T
8	6LA58802600	Cam boss A shaf M
9	41330514600	BUSHING C MULTI
